| USB: | 4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front) |
| Manufacturer: | MSI |
| Memory type: | 2x DDR5, Maximum Memory Capacity 96GB;Memory Support DDR5 5600 MHz (by JEDEC & POR);Supports Intel® XMP 3.0 OC;Supports Dual-Controller Dual-Channel mode;Supports non-ECC, un-buffered memory |
| Features: | 4x EZ Debug LED |
| CPU's supported: | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Chipset: | INTEL H610 |
| Graphics: | 1x HDMI™;Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*;1x VGA;Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Expansion Slots: | 1x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to (From CPU);PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Storage: | 1x M.2;M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices;4x SATA 6G |

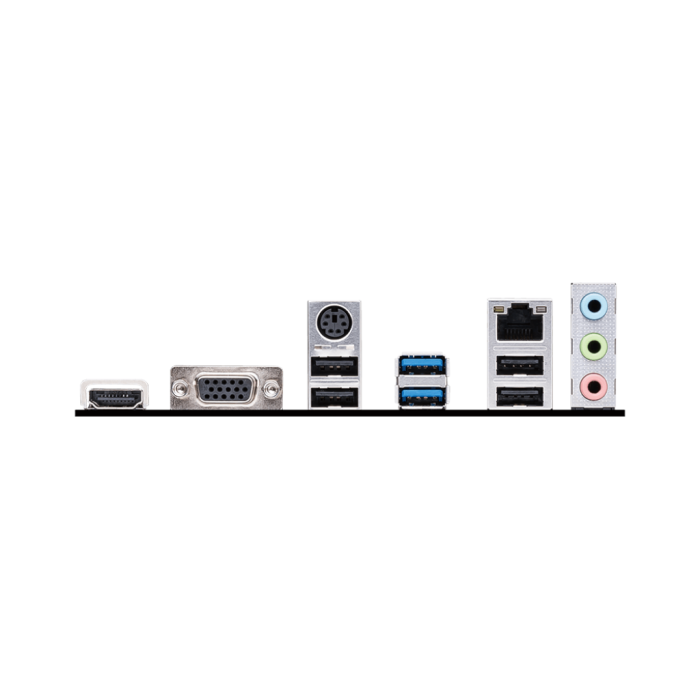

| I/O: | HDMI™;VGA;Keyboard / Mouse;USB 3.2 Gen 1 5Gbps (Type-A);LAN port;Audio Connectors;USB 2.0;USB 2.0 |
| Connectors: | 1x Power Connector(ATX_PWR);1x Power Connector(CPU_PWR);1x CPU Fan;2x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;2x USB 5Gbps Type A ports |
| Audio: | Realtek® ALC897 Codec;7.1-Channel High Definition Audio |
| LAN: | Realtek® RTL8111H Gigabit LAN |
| Form Factor: | mATX, 200mmx236.16mm |
| OS: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Сайт на производителя: | https://www.msi.com/Motherboard/PRO-H610M-E/Overview |
