| Manufacturer: | MSI |
| Wireless: | AMD Wi-Fi 6E;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX;Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands;Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Memory type: | 2x DDR5, Maximum Memory Capacity 128GB;Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz;Max. overclocking frequency;-1DPC 1R Max speed up to 7200+ MHz;-1DPC 2R Max speed up to 6400+ MHz;Supports Dual-Channel mode;Supports non-ECC, un-buffered memory;Supports AMD EXPO™ |
| Features: | 4x EZ Debug LED |
| CPU's supported: | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Chipset: | AMD B650 |
| Bluetooth: | 5.3 |
| Graphics: | 1x HDMI™;Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz |
| Expansion Slots: | 1x PCI-E x16 slot;-Supports x16 (For Ryzen™ 9000/ 7000 Series processors);-Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);-Supports x4 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Storage: | 2x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices;Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

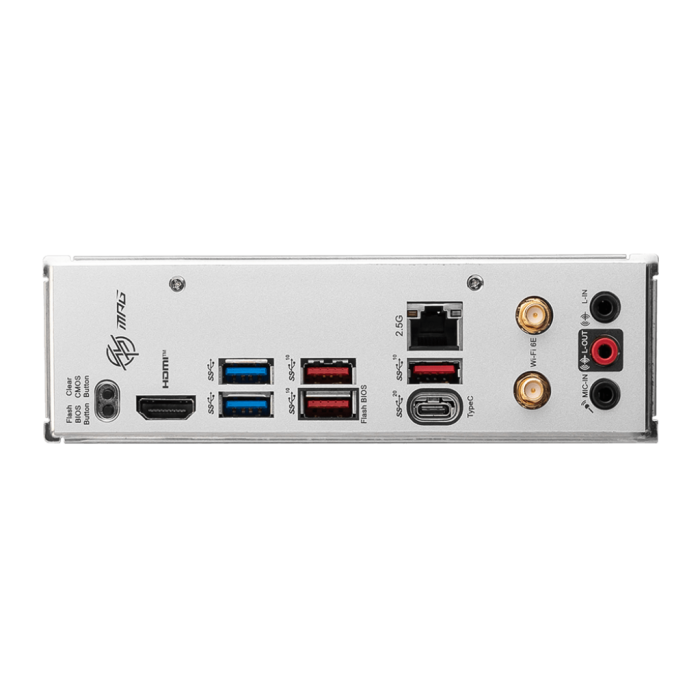

| I/O: | 2x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);3x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Rear);1x Power Connector(ATX_PWR);1x Power Connector(CPU_PWR);1x CPU Fan;1x Pump Fan;1x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Addressable V2 RGB LED connector (JARGB_V2);1x TPM pin header(Support TPM 2.0) |
| Audio: | Realtek® ALC4080 Codec;7.1-Channel USB High Performance Audio;Supports up to 32-Bit/384 kHz playback on front panel |
| LAN: | Realtek® RTL8125BG 2.5Gbps LAN |
| Form Factor: | Mini-ITX 170mmx170mm |
| OS: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Сайт на производителя: | https://www.msi.com/Motherboard/MPG-B650I-EDGE-WIFI |
