X870E CHALLENGER WIFI

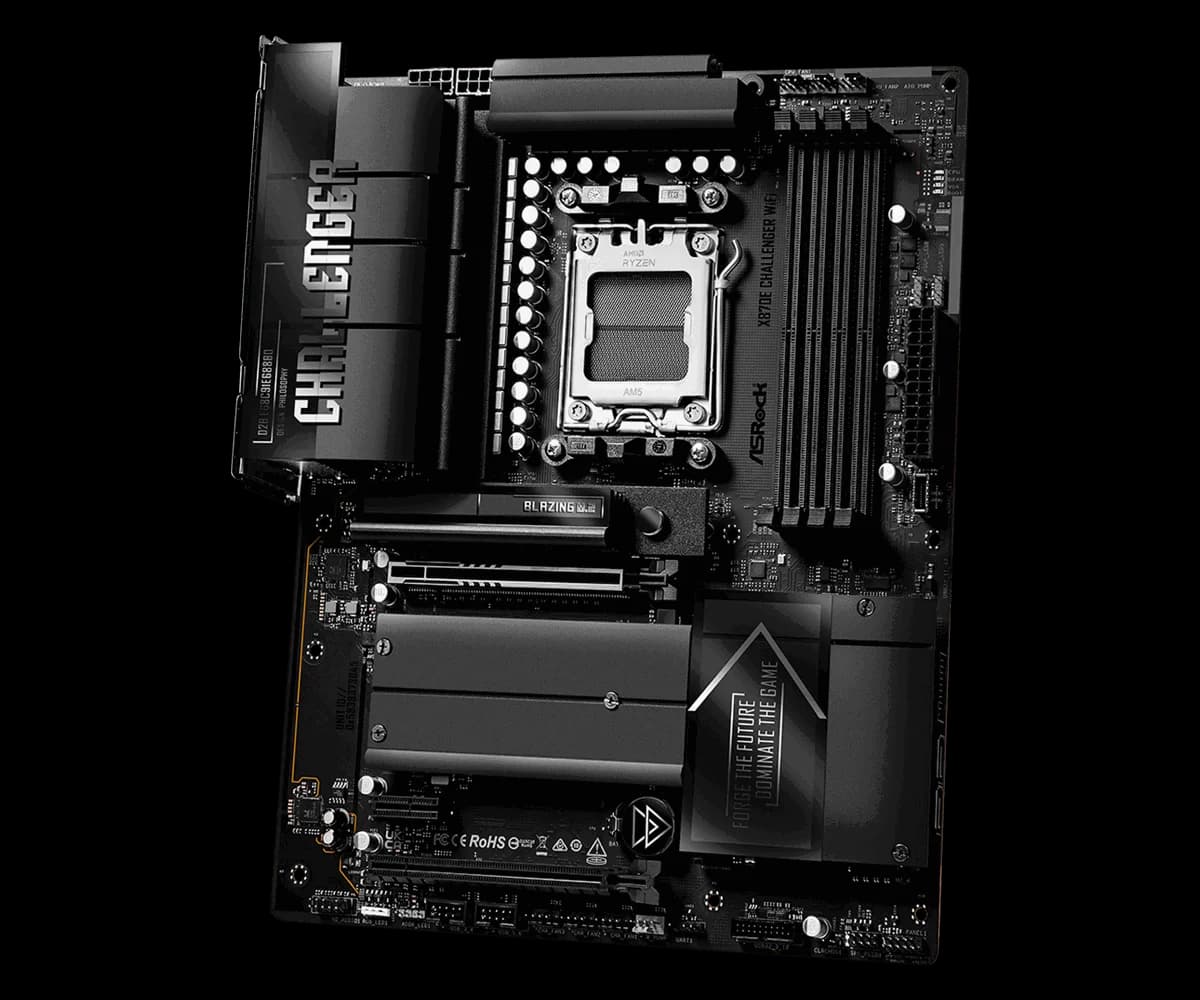

ASROCK X870E CHALLENGER WIFI
| Brand | ASROCK |
|---|---|
| Warranty | 36 месеца |
| EAN | 4711581493872 |
|---|---|
| Размери | 30.5 cm x 24.4 cm |
| Допълнителна информация | Superb Productivity; - PCIe Gen5 (Graphics, M.2); - Dual Channel DDR5; - USB4 Type-C Ports (40 Gb/s); Rock-Solid Durability; - Server-Grade Low-Loss PCB; - 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor; - Flexible Integrated I/O Shield Ultrafast Gaming; - 5G LAN, 802.11be Wi-Fi 7 Module; - ASRock Lightning Gaming Ports; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker |
| Модел | X870E Challenger WiFi |
| Чипсет | AMD X870E |
|---|---|
| Сокет | AMD AM5 |
| Сокет | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Тип памет | Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Max. capacity of system memory: 256GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|---|
| Тип на устройството за съхранение | CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; * Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 2 x SATA3 6.0 Gb/s Connectors |
|---|
| Графичен процесор | Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
|---|
| Аудио | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec); Individual PCB Layers for R/L Audio Channel; Nahimic Audio |
|---|
| USB портове | CPU:; - 2 x USB4 Type-C (Rear); - 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)); Chipset:; - 1 x USB 3.2 Gen2x2 Type-C (Front); - 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)); - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front); - 6 x USB 2.0 (2 Rear, 4 Front) |
|---|---|
| Слотове за разширение | CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode; - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode; - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Bluetooth | Supports Bluetooth 5.4 |
| Безжична технология | 802.11be 2x2 Wi-Fi 7 Module; Supports IEEE 802.11a/b/g/n/ac/ax/be; Supports 2.4GHz/5GHz/6GHz frequency band; Supports 160MHz channel bandwidth with 6GHz frequency band; 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.4; Supports MU-MIMO |
| Портове | 2 x Antenna Ports; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 2 x USB4 Type-C Ports (40 Gb/s); 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.); 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.); 2 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x Clear CMOS Button; 1 x BIOS Flashback Button; 1 x Line Out Jack (Gold Audio Jack); 1 x Microphone Input Jack (Gold Audio Jack) |
| Конектор | 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control); 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Форм фактор | ATX, 8 Layer PCB, 2oz Copper PCB |
|---|
| Операционна система | Microsoft Windows® 10 64-bit / 11 64-bit |
|---|---|
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
