911-7C96-071

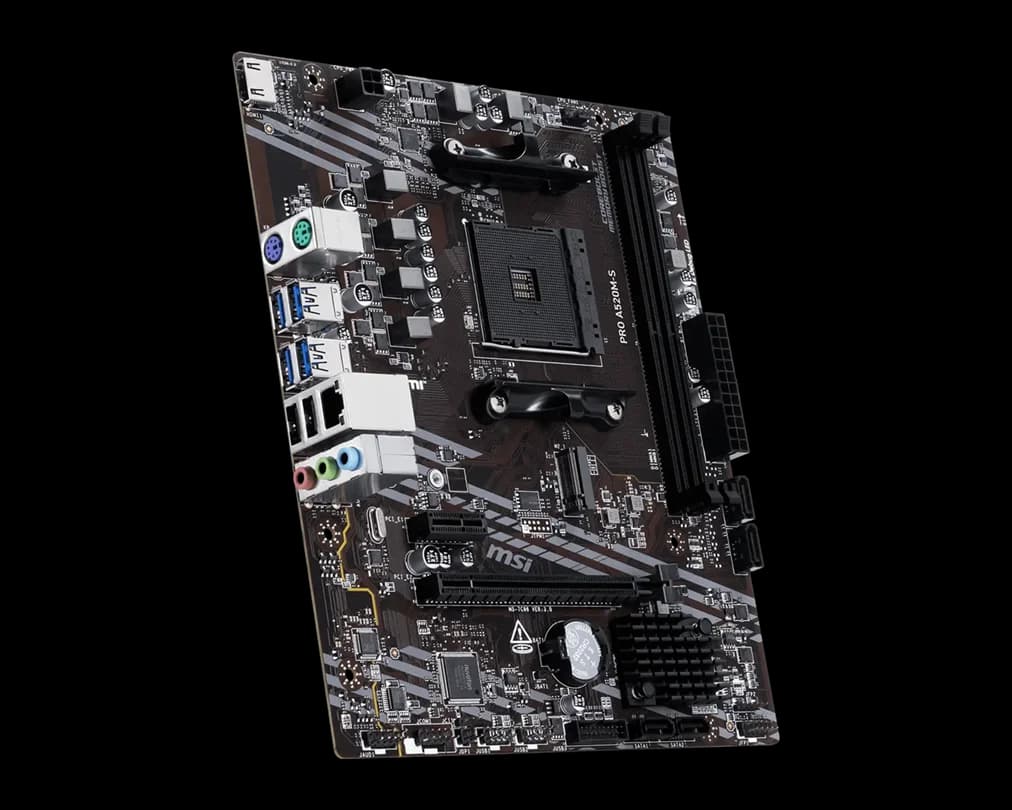

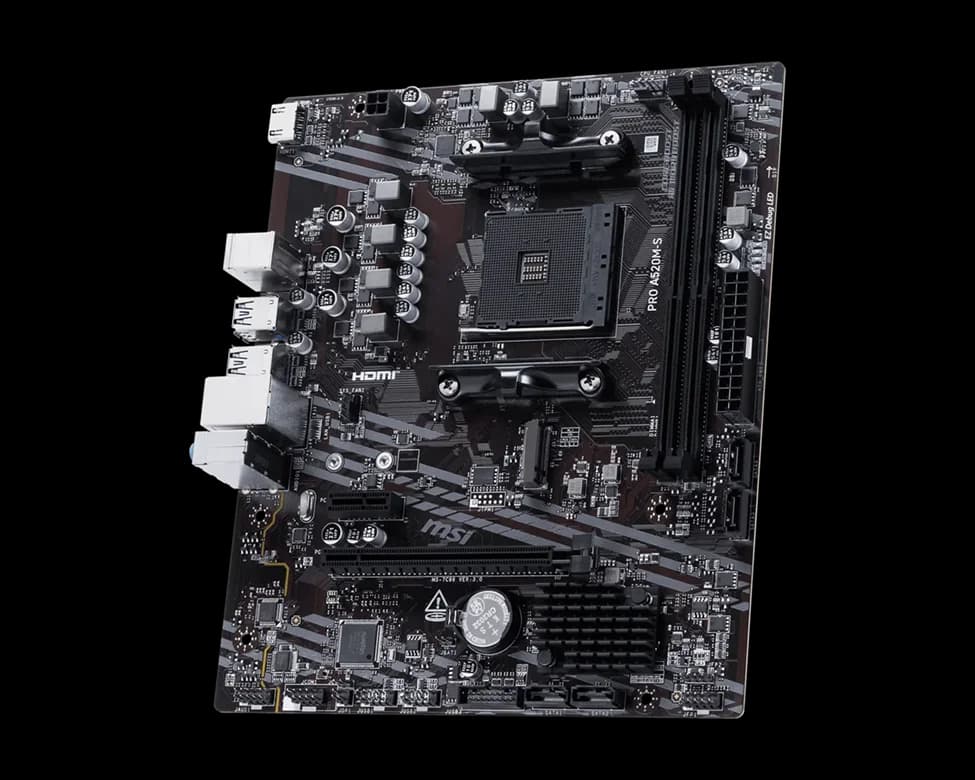

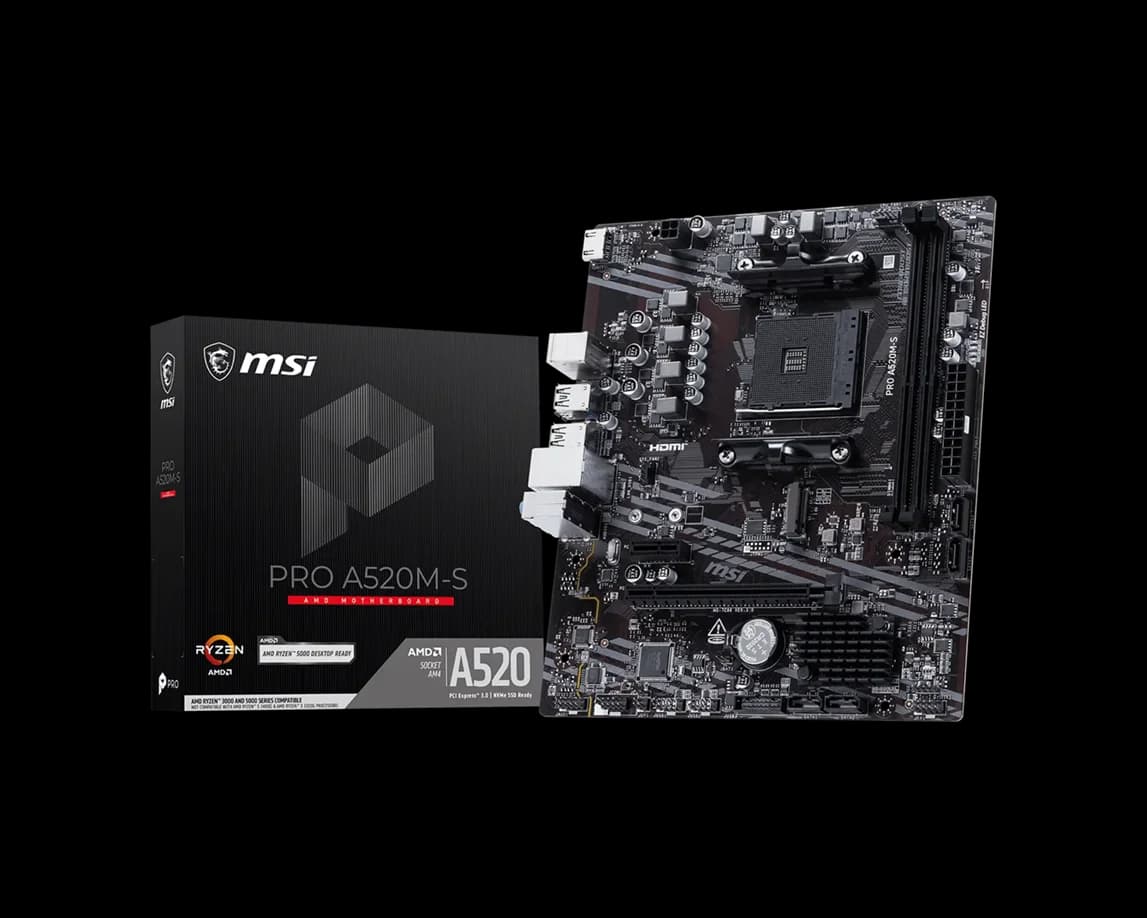

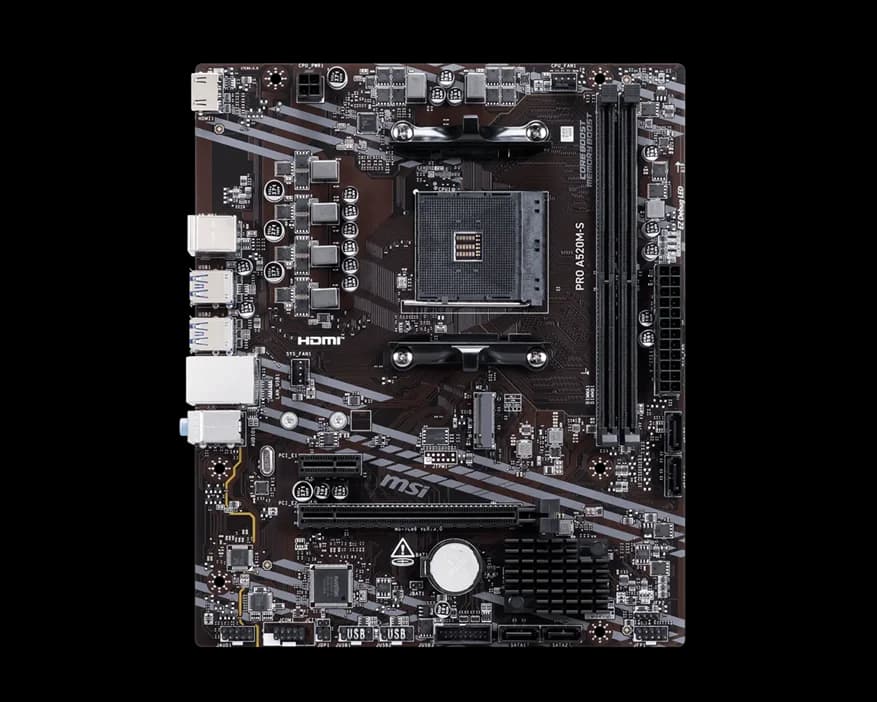

MSI PRO A520M-S
| Марка | MSI |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711377465847 |
|---|---|
| Допълнителна информация | 4x EZ Debug LED |
| Модел | PRO A520M-S |
| Чипсет | AMD A520 |
|---|---|
| Сокет | AM4 |
| Сокет | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors |
| Тип памет | 2x DDR4, Maximum Memory Capacity 64GB; Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; Ryzen™ 5000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 4600+ MT/s; • 1DPC 2R Max speed up to 3866+ MT/s; Supports JEDEC Speed; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Memory Overclocking by A-XMP OC mode |
|---|
| Тип на устройството за съхранение | 1x M.2; M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices; 4x SATA 6G |
|---|
| Графичен процесор | 1x HDMI™; Support HDMITM 1.4, maximum resolution of 4K 30Hz |
|---|
| Аудио | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
|---|
| USB портове | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front) |
|---|---|
| Слотове за разширение | 1x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) |

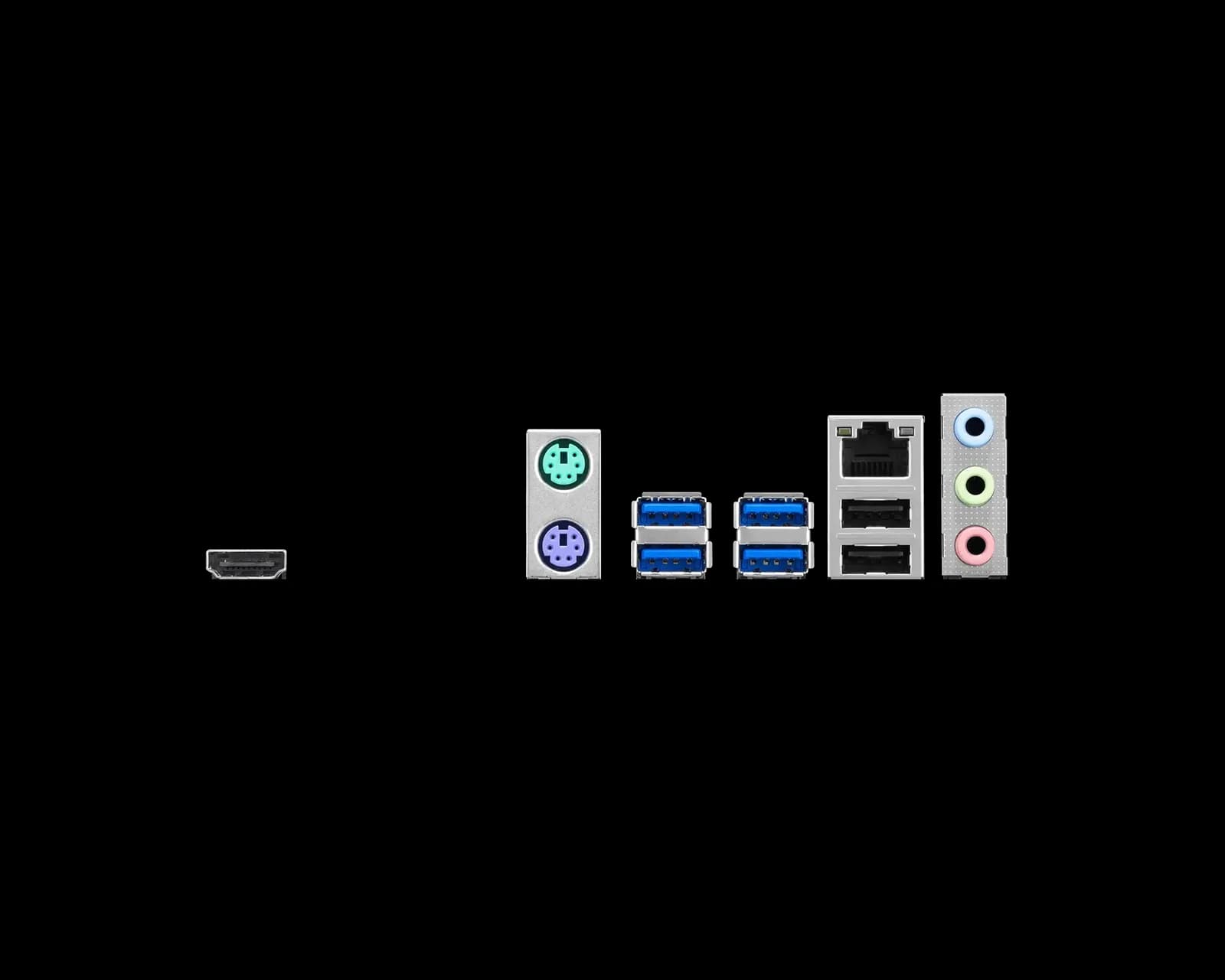

| Портове | HDMI™; Keyboard / Mouse; USB 5Gbps Type-A; LAN Port; Audio connectors; USB 2.0 |
| Конектор | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports |
| Форм фактор | mATX, 200mmx236mm |
|---|
| Операционна система | Support for Windows® 11 64-bit |
|---|---|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
