911-7F01-004

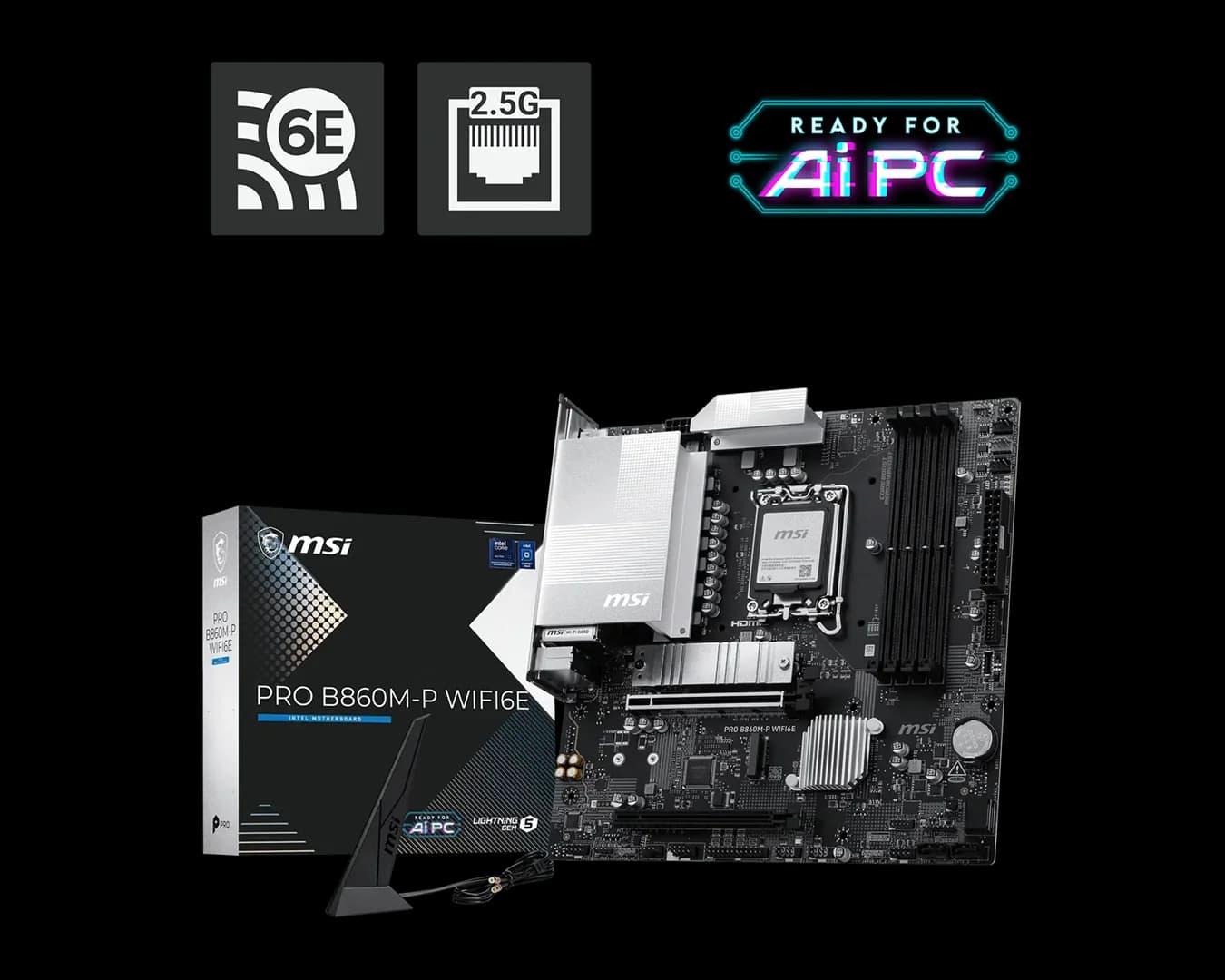

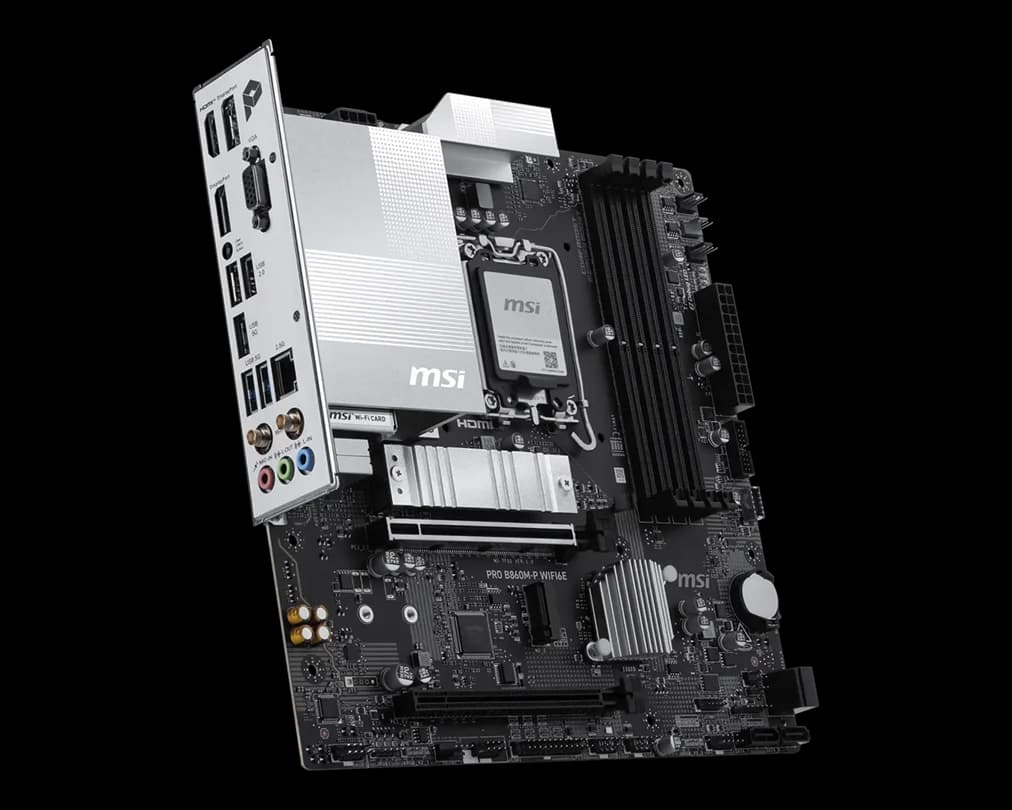

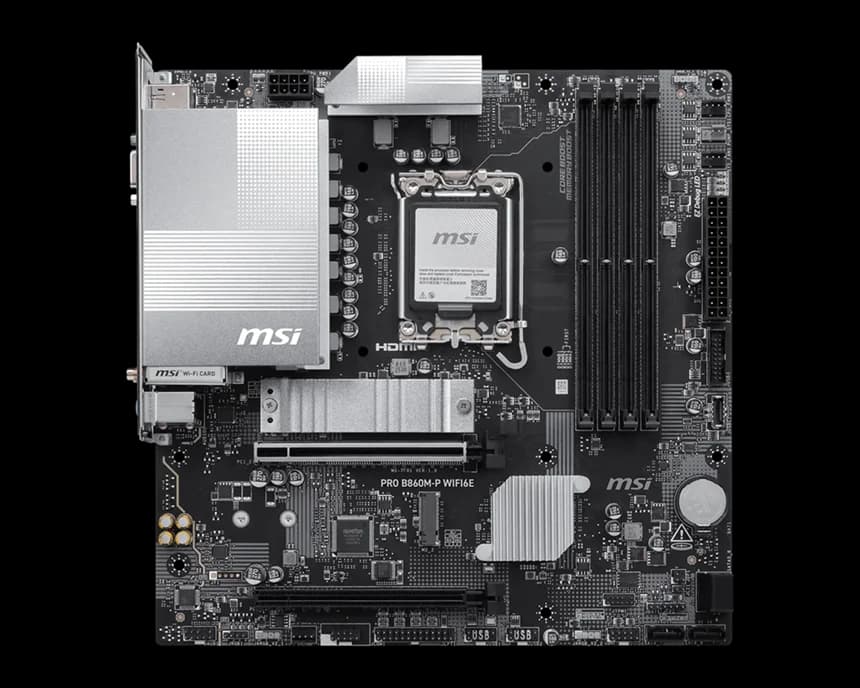

MSI PRO B860M-P WIFI6E
| Марка | MSI |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711377432696 |
|---|---|
| Допълнителна информация | 4x EZ Debug LED; 1x EZ Memory Detection LED |
| Модел | PRO B860M-P WIFI6E |
| Чипсет | INTEL B860 |
|---|---|
| Сокет | LGA 1851 |
| Сокет | Supports Intel® Core™ Ultra Processors (Series 2) |
| Тип памет | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM |
|---|
| Тип на устройството за съхранение | 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; *Please refer to the manual for M.2 SSD heatsink restrictions. |
|---|
| Графичен процесор | 1x HDMI™; Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*; 2x DisplayPort; Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|---|
| Аудио | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
|---|
| USB портове | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front) |
|---|---|
| Слотове за разширение | 2x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Bluetooth | Supports Bluetooth® 5.3**, FIPS, FISMA |
| Безжична технология | Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax |

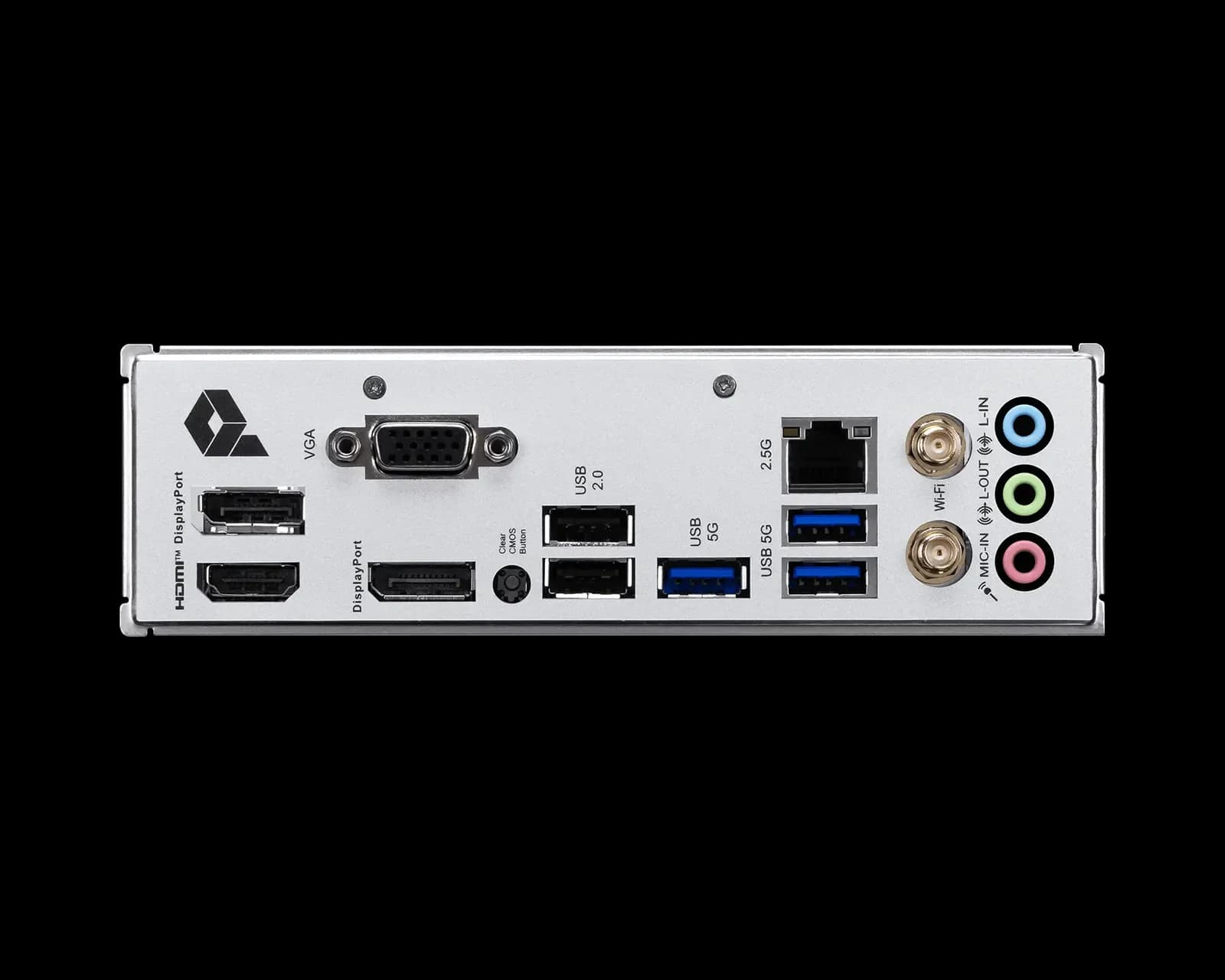

| Портове | DisplayPort; VGA; USB 2.0; USB 5Gbps Type-A; 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; HDMI™; DisplayPort; Clear CMOS Button; USB 5Gbps Type-A |
| Конектор | 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports |
| Форм фактор | mATX, 243.84mmx243.84mm |
|---|
| Операционна система | Support for Windows® 11 64-bit |
|---|---|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
