911-7E48-006
MSI MEG X870E GODLIKE
MSI MEG X870E GODLIKE. Производител на процесора: AMD, Стандарт на цокъла за процесор: Цокъл AM5, Съвместими серии процесори: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Поддържани типове памет: DDR5-SDRAM, Максимална вътрешна памет: 256 GB, Тип слотове памет: DIMM. Поддържани интерфейси за устройства за съхранение: M.2, SATA III, Поддържани видове устройства за съхранение: HDD & SSD, RAID поддръжка: 0, 1, 10. Тип на Ethernet интерфейса: 5 Gigabit Ethernet, Топ Wi-Fi стандарт: Wi-Fi 7 (802.11be), Wi-Fi стандарти: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Компонент за: Персонален компютър, Типоразмер на дънната платка: Разширена ATX, Серия на чипсет на дънната платка: AMD
| Марка | MSI |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711377276221 |
|---|
| Чипсет | AMD X870E |
|---|---|
| Сокет | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors;Socket AM5 |
| Тип памет | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8400+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only |
|---|
| Тип на устройството за съхранение | 7x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices;M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices;M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices;M.2_1:;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors);M.2_2:;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.;M2_4:;PCI_E3 slot |
|---|
| Графичен процесор | 2x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz |
|---|
| Аудио | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA;7.1-Channel USB High-Performance Audio;Supports S/PDIF output;Supports up to 32-Bit/384 kHz playback on front panel |
|---|
| USB портове | 4x USB 2.0 (Front);4x USB 5Gbps Type A (Front);8x USB 10Gbps Type A (Rear);5x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front);1x USB 20Gbps Type C (Front);2x USB 40Gbps Type C (Rear) |
|---|---|
| Слотове за разширение | 2x PCI-E x16 slot;1x PCI-E x4 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 & PCI_E2 slots;• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors);• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors);PCI_E3 slot;• Supports up to PCIe 4.0 x4 |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Безжична технология | Wi-Fi 7 Solution;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |

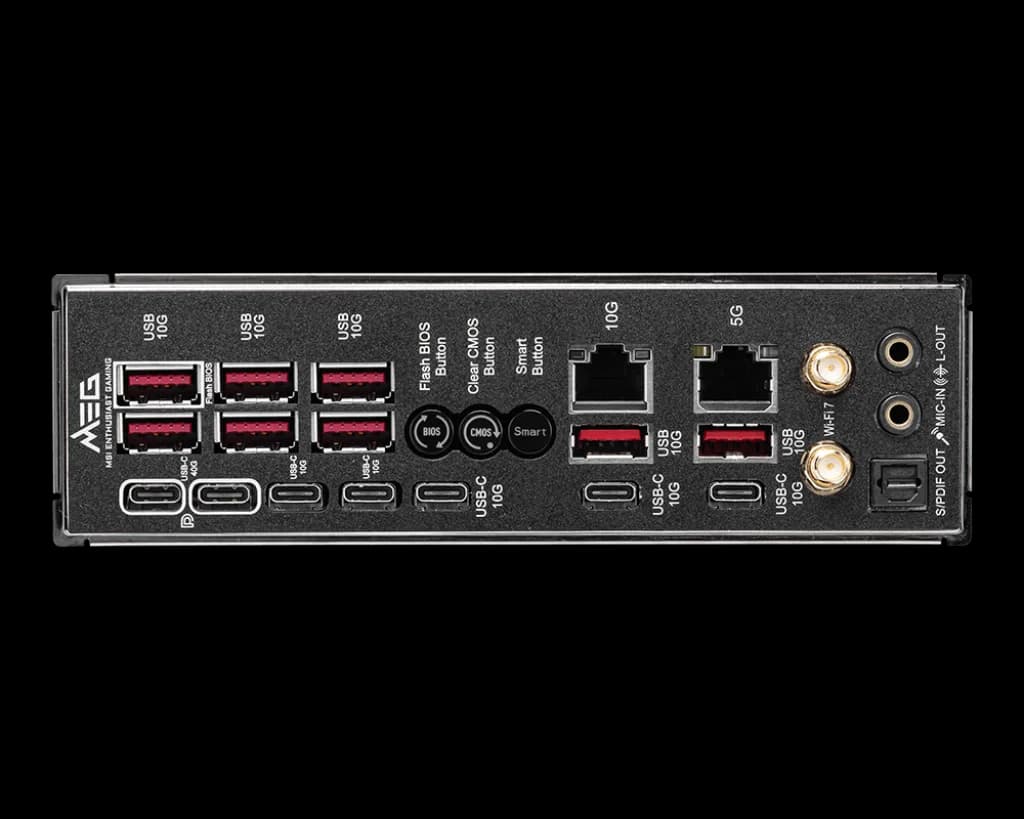

| Портове | USB 10Gbps (Type-A);Flash BIOS Button;Clear CMOS Button;Smart Button;10G LAN;5G LAN;Wi-Fi / Bluetooth;HD Audio Connectors;USB 40Gbps (Type-C);USB 10Gbps (Type-C);USB 10Gbps (Type-A);Optical S/PDIF-Out |
| Конектор | 1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x Front Type-C Quick Charge Connector(PD_PWR1);1x CPU Fan;2x Combo Fan (Pump_Sys Fan);1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);2x Thermal Sensor connectors(T_SEN);1x Tuning Controller connector(JDASH);1x Addressable V2 RGB LED connector (JARGB_V2);V-check point;4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports;1x USB 20Gbps Type C ports |
| Форм фактор | E-ATX;304.8mmx277mm |
|---|
| Операционна система | Support for Windows® 11 64-bit |
|---|
