911-7E14-007

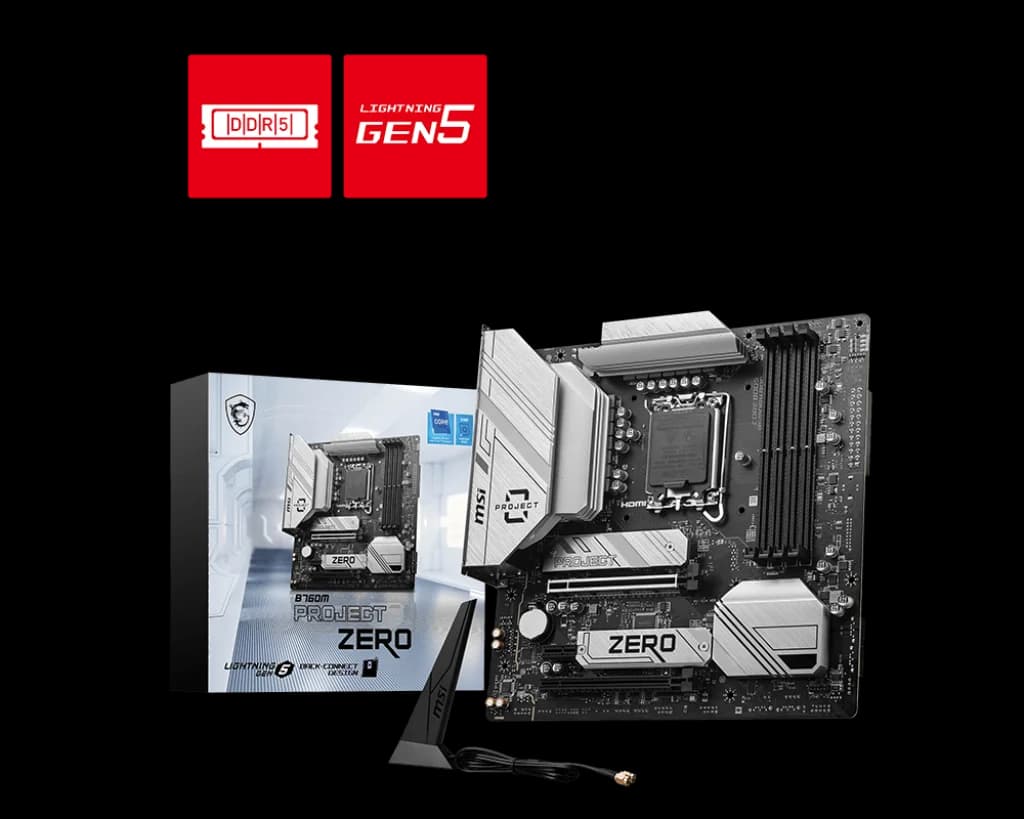

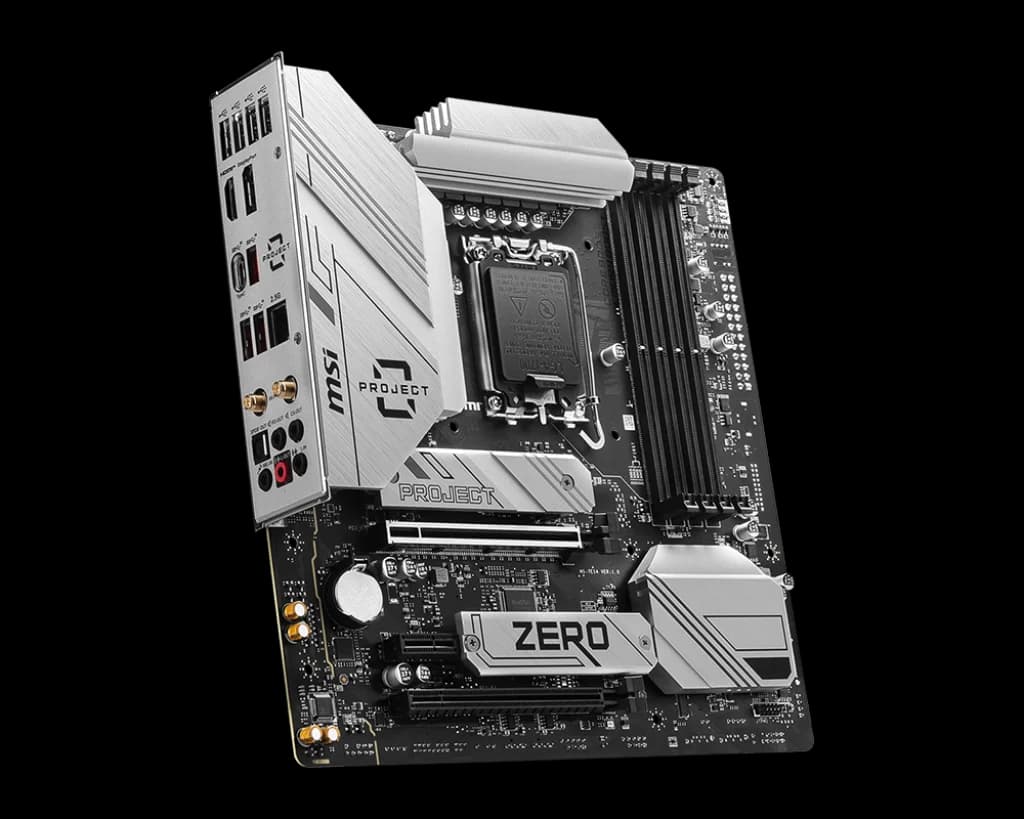

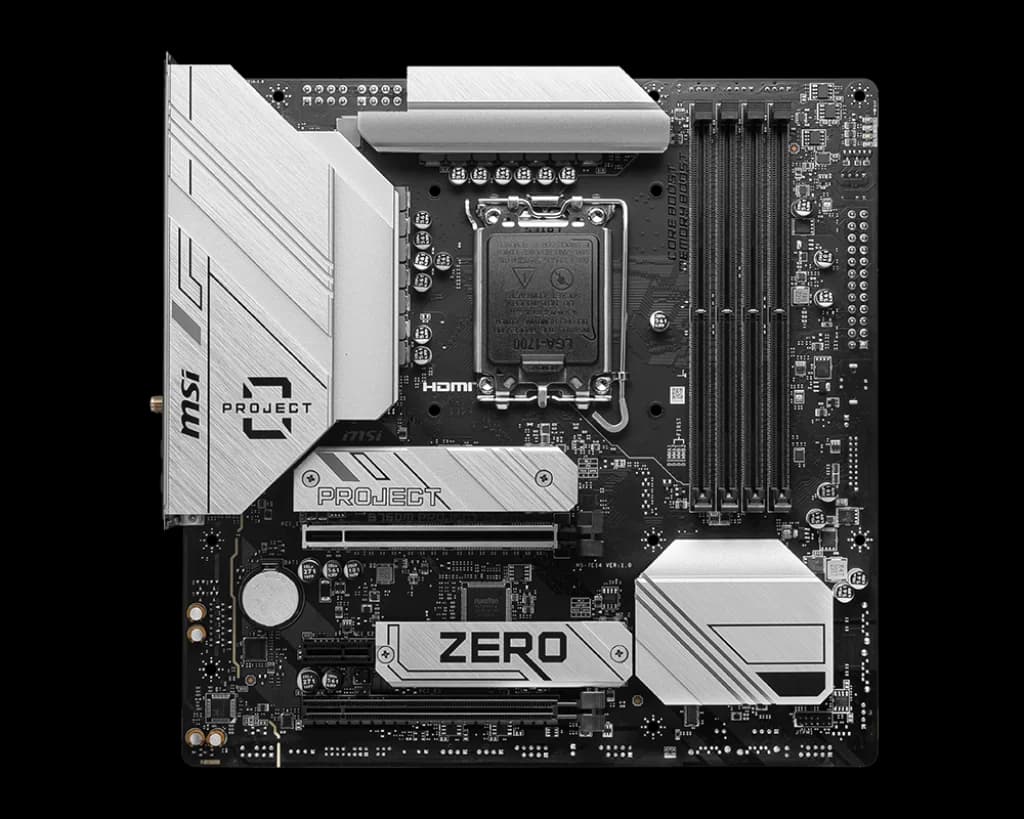

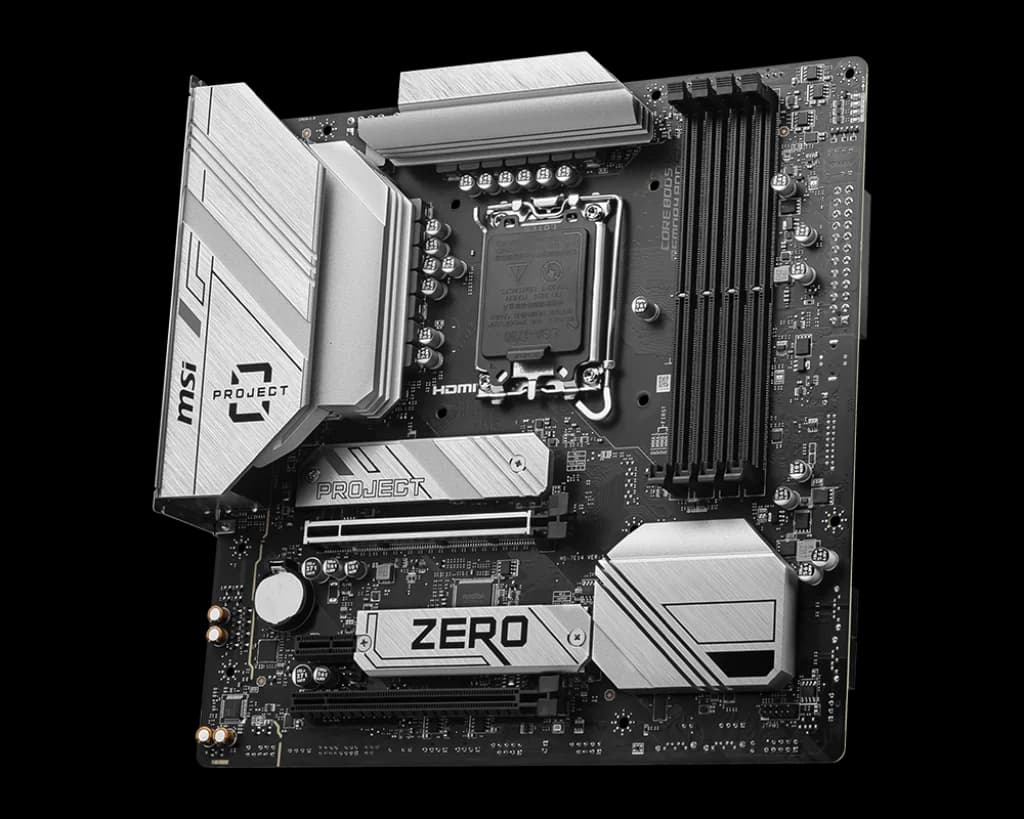

MSI B760M PROJECT ZERO
MSI B760 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi
| Марка | MSI |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711377143660 |
|---|
| Чипсет | INTEL B760 |
|---|---|
| Сокет | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Златист and Celeron® Processors LGA1700 |
| Тип памет | 4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile |
|---|---|
| Брой слотове за памет DDR5 | 4 |
| Тип на устройството за съхранение | 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz |
|---|
| Аудио | Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output |
|---|
| Слотове за разширение | 2x PCI-E x16 slot; 1x PCI-E x1 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|---|---|
| Bluetooth | 5.3 |
| Безжична технология | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| HDMI | Да |

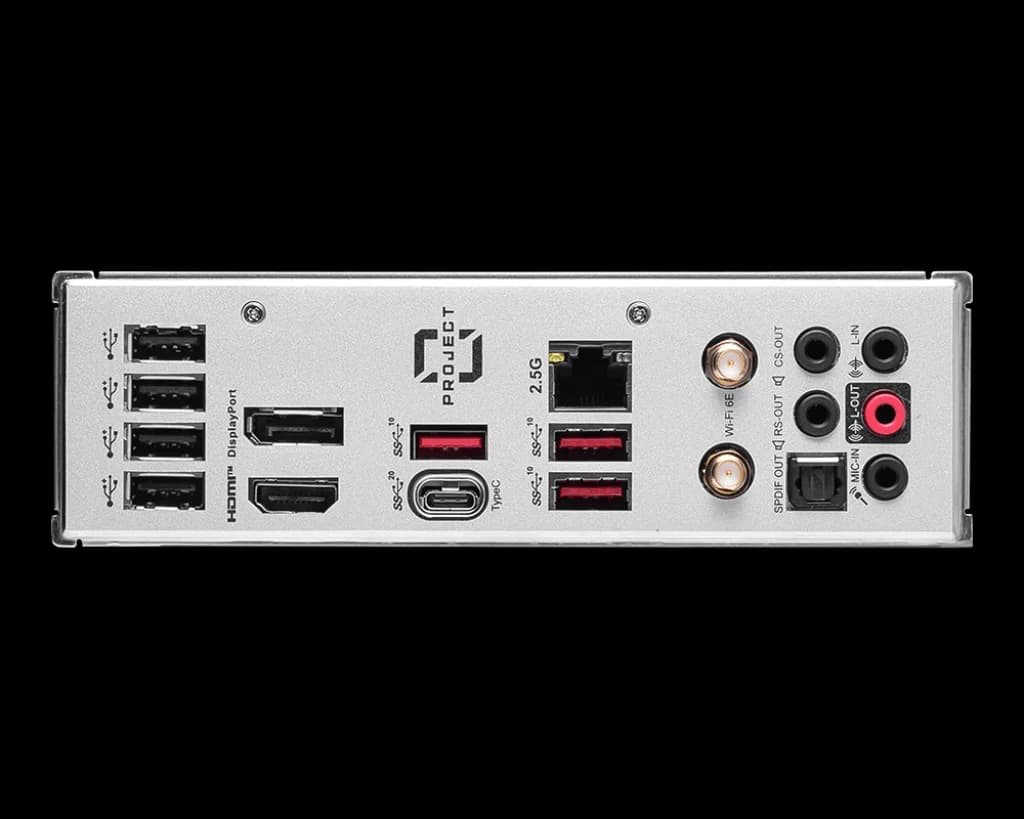

| Портове | 4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Front); 3x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear) |
| Конектор | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 4x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector(JDASH); 2x Addressable V2 RGB LED connector (JARGB_V2); 2x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports |
| DisplayPort | Да |
| 2 броя M.2 слотове | Да |
| 2 броя PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| Форм фактор | mATX 243.84mmx243.84mm |
|---|
| Операционна система | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|---|
| RAID | RAID Supported / Поддържа RAID |
