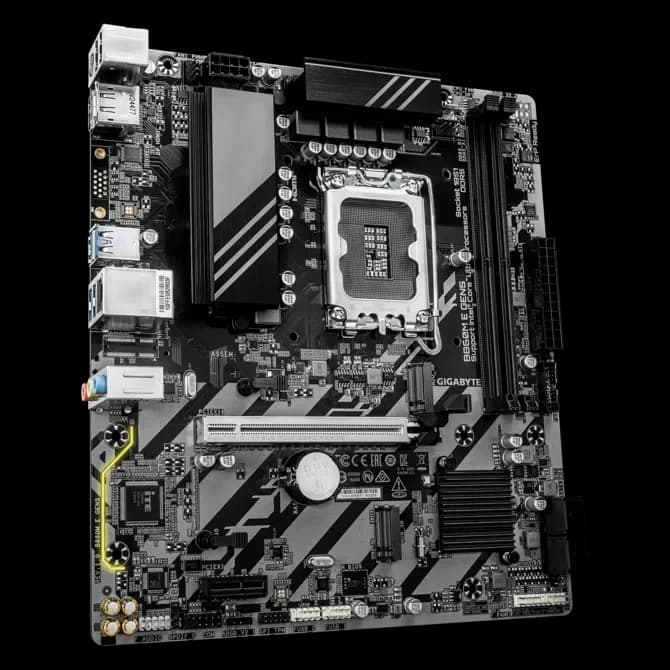

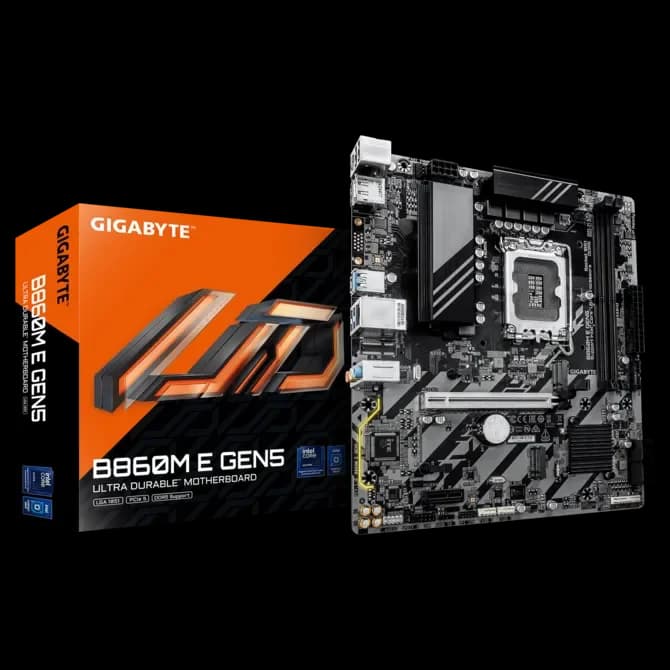

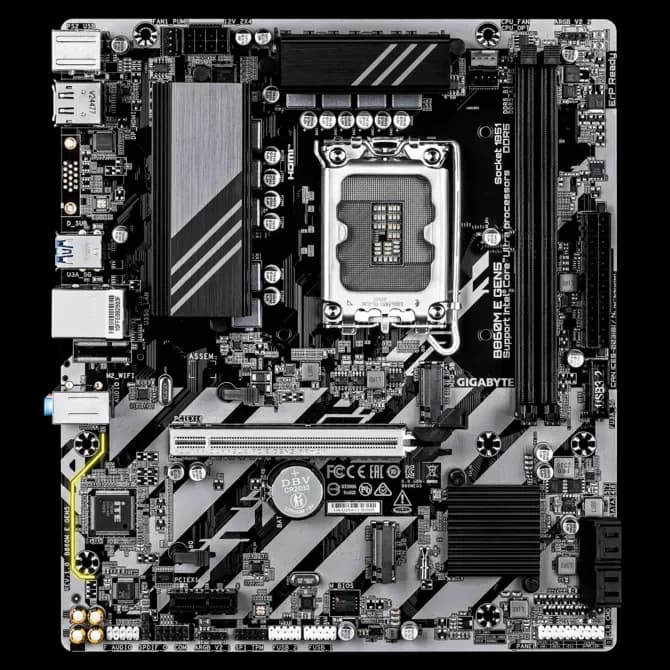

B860M E GEN5
GB B860M E GEN5 / LGA1851
GIGABYTE B860M E GEN5. Производител на процесора: Intel, Стандарт на цокъла за процесор: LGA 1851 (Socket V1), Съвместими серии процесори: Intel Core Ultra (Series 2). Поддържани типове памет: DDR5-SDRAM, Максимална вътрешна памет: 128 GB, Тип слотове памет: DIMM. Поддържани интерфейси за устройства за съхранение: M.2, PCI Express 4.0, SATA III, Поддържани видове устройства за съхранение: HDD & SSD, RAID поддръжка: 0, 1, 5, 10. Максимална резолюция: 4096 x 2160 пиксела. Тип на Ethernet интерфейса: Гигабитов етернет, LAN контролер: Realtek RTL8111H
| Марка | GIGABYTE |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4719331879853 |
|---|
| Чипсет | Intel® B860 Express Chipset |
|---|---|
| Сокет | LGA1851 socket: Support for Intel® Core™ Ultra Processors; (Go to GIGABYTE's website for the latest CPU support list.); L3 cache varies with CPU |
| Тип памет | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|---|
| Тип на устройството за съхранение | Chipset:; - 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support); - 4 x SATA 6Gb/s connectors |
|---|
| Графичен процесор | Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; (Graphics specifications may vary depending on CPU support.) |
|---|
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out |
|---|
| USB портове | Chipset:; - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header); - 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|---|---|
| Слотове за разширение | CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Портове | iTE®I/O Controller Chip |

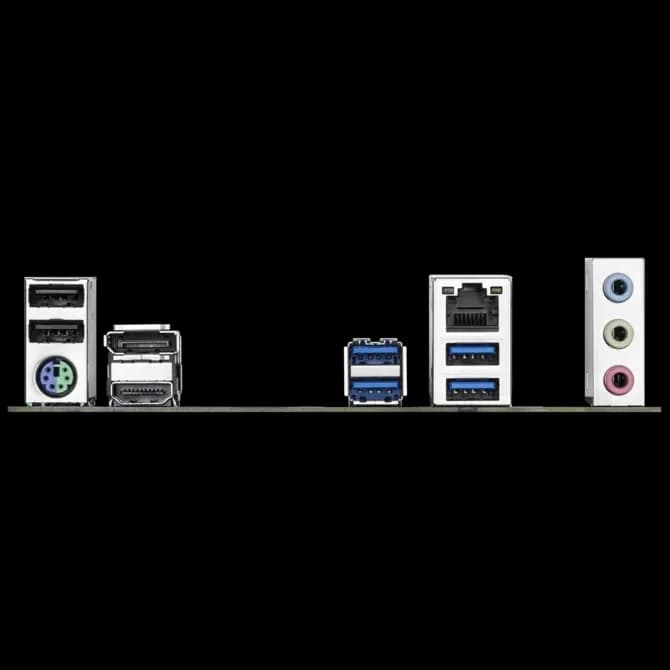

| Конектор | Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan/water cooling pump header; 2 x addressable RGB Gen2 LED strip headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x HDMI port*; 1 x DisplayPort*; 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|---|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
