A620M H 2.2
GB A620M H / AM5
GB A620 2xDDR5 4xSATA3 RAID HDMI DP 1xM2 GLAN 1xPCIEx16 1xPCIEx1
| Марка | GIGABYTE |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4719331855512 |
|---|
| Чипсет | AMD A620 |
|---|
| Тип памет | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|---|---|
| Брой слотове за памет DDR5 | 2 |
| Тип на устройството за съхранение | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports. |
|---|
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
|---|
| Слотове за разширение | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD.; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|---|---|
| HDMI | Да |

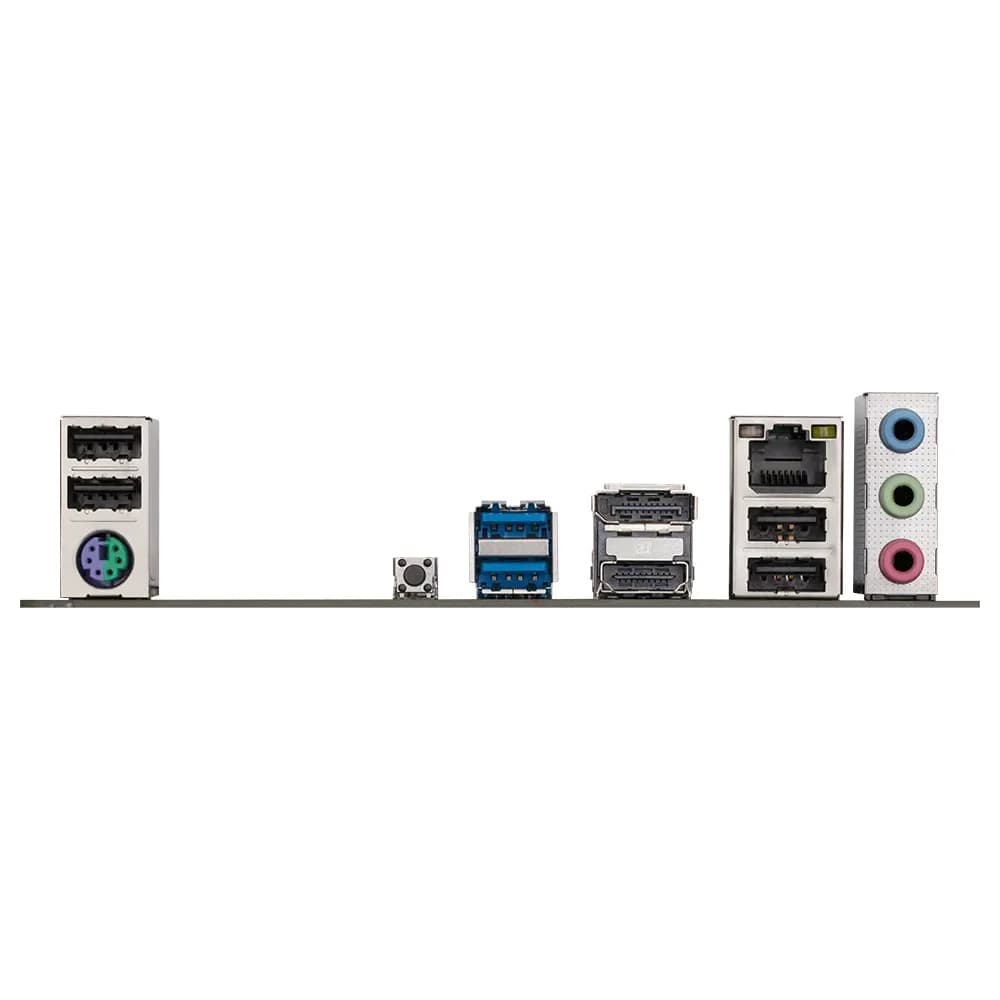

| Портове | 4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x DisplayPort; 1 x HDMI port; 1 x RJ-45 port; 3 x audio jacks |
| Конектор | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x Clear CMOS jumper |
| DisplayPort | Да |
| 1 брой PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| 1 брой M.2 слот | Да |
| Форм фактор | Micro ATX Form Factor; 23.0cm x 22.5cm |
|---|
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
|---|---|
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| RAID | RAID Supported / Поддържа RAID |
