A520M DS3H V2 1.0
GB A520M DS3H V2
GB A520 4xDDR4 4xSATA3 RAID HDMI DP 1xM2 GLAN 1xPCIEx16 1xPCIEx1
| Марка | GIGABYTE |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4719331854690 |
|---|
| Чипсет | AMD A520 |
|---|
| Тип памет | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
|---|---|
| Брой слотове за памет DDR4 | 4 |
| Тип на устройството за съхранение | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10 |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Maximum shared memory of 16 GB |
|---|
| Аудио | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
|---|
| Слотове за разширение | 1 x PCI Express x16 slot, integrated in the CPU: Supporting PCIe 3.0 x16 mode; 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
|---|---|
| HDMI | Да |

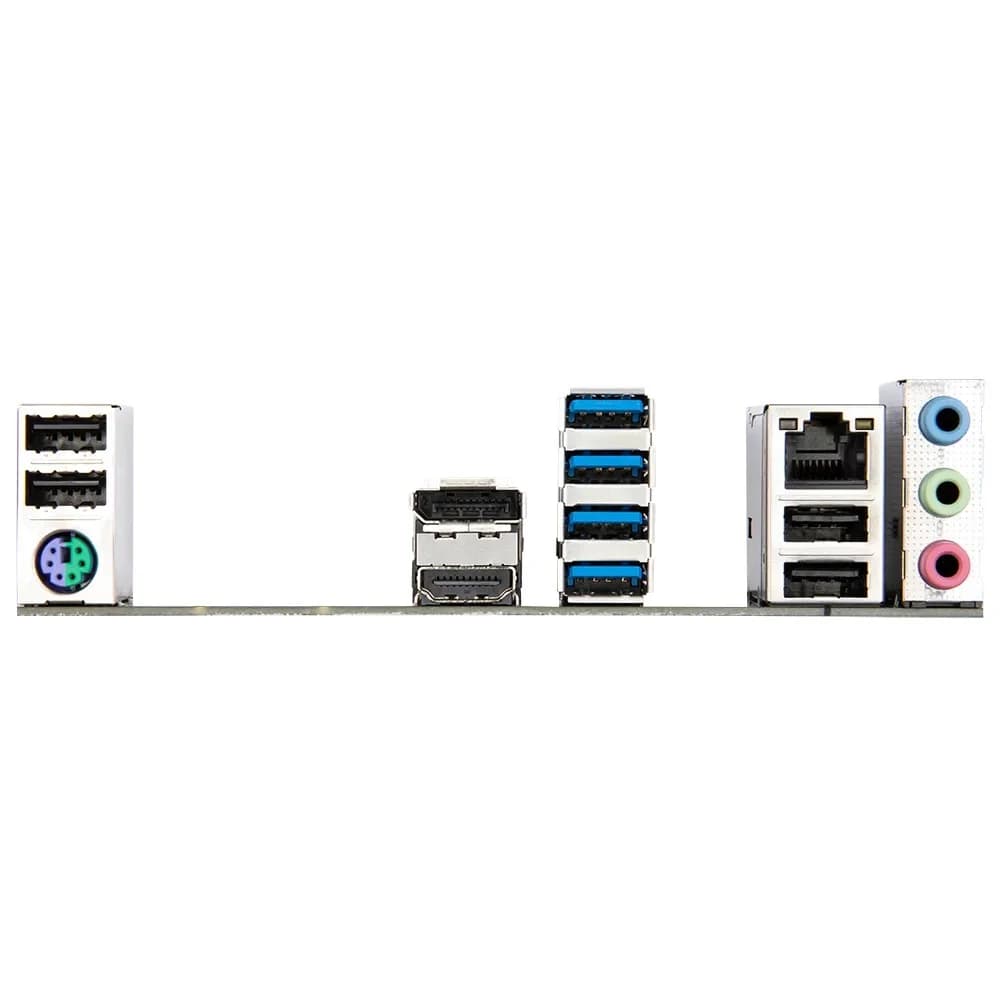

| Портове | 1 x PS/2 keyboard/mouse port; 1 x DisplayPort; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks |
| Конектор | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper |
| DisplayPort | Да |
| 1 брой PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| 1 брой M.2 слот | Да |
| Форм фактор | Micro ATX Form Factor; 24.4cm x 24.4cm |
|---|
| Операционна система | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
|---|---|
| BIOS | 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| RAID | RAID Supported / Поддържа RAID |
