90MB1J30-M0EAY0

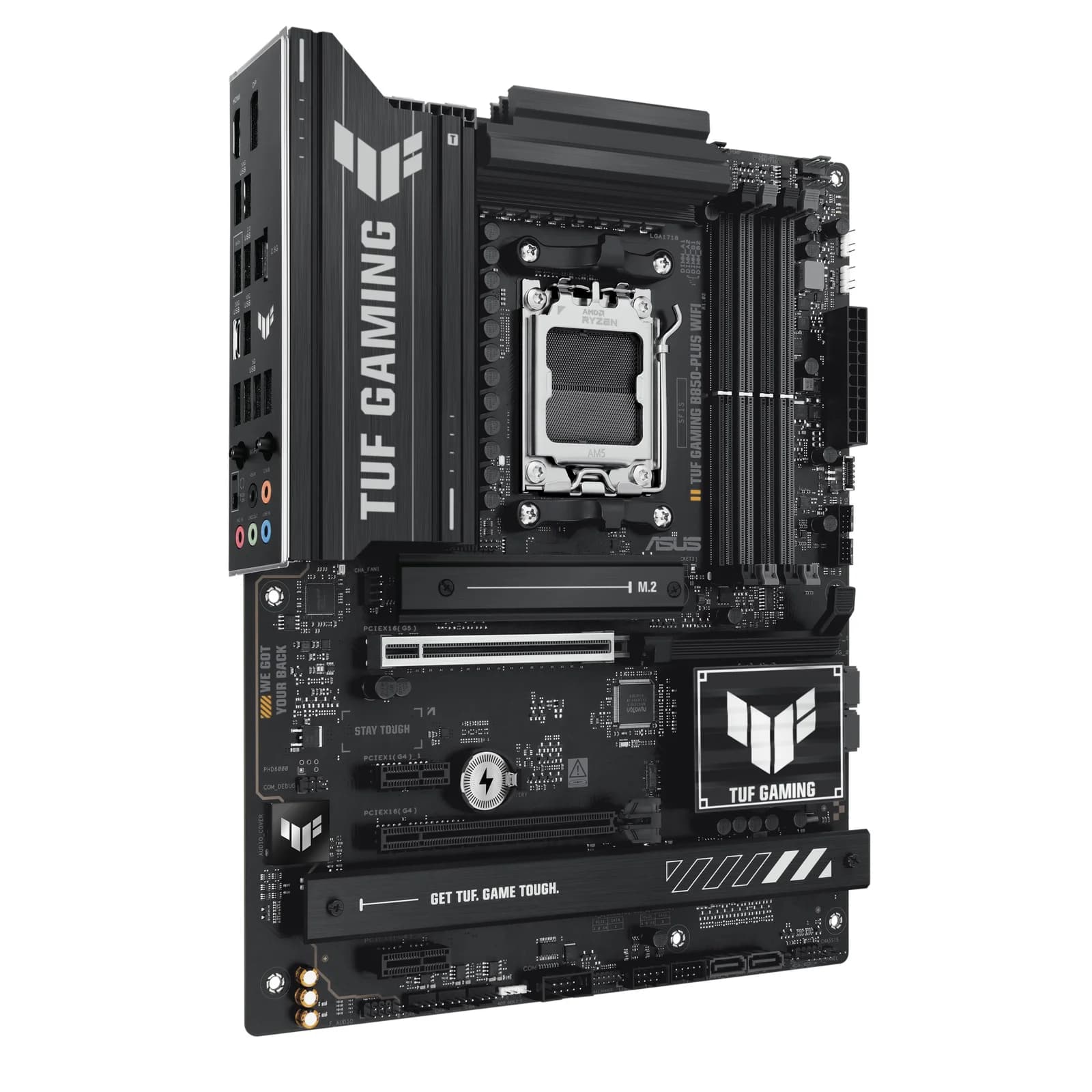

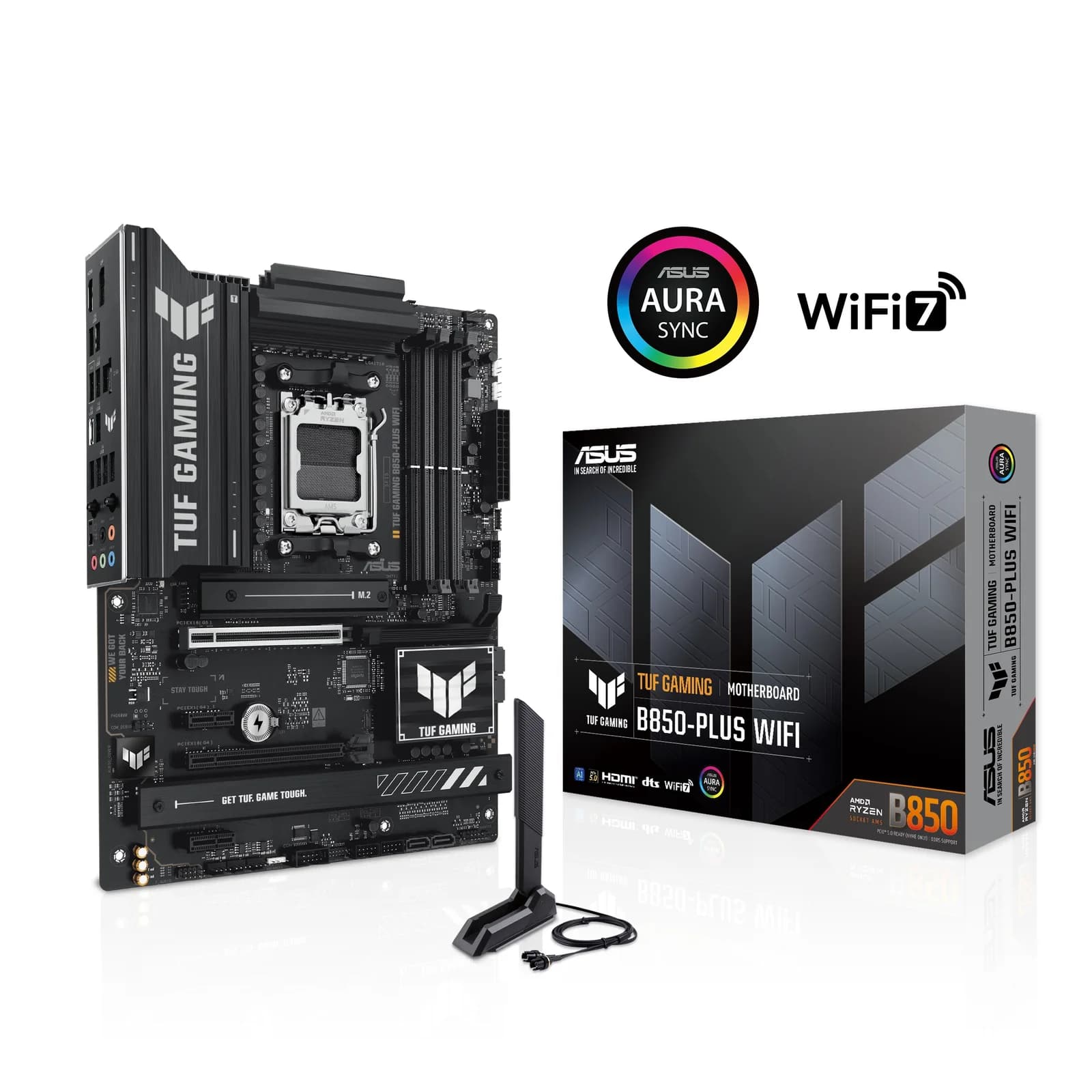

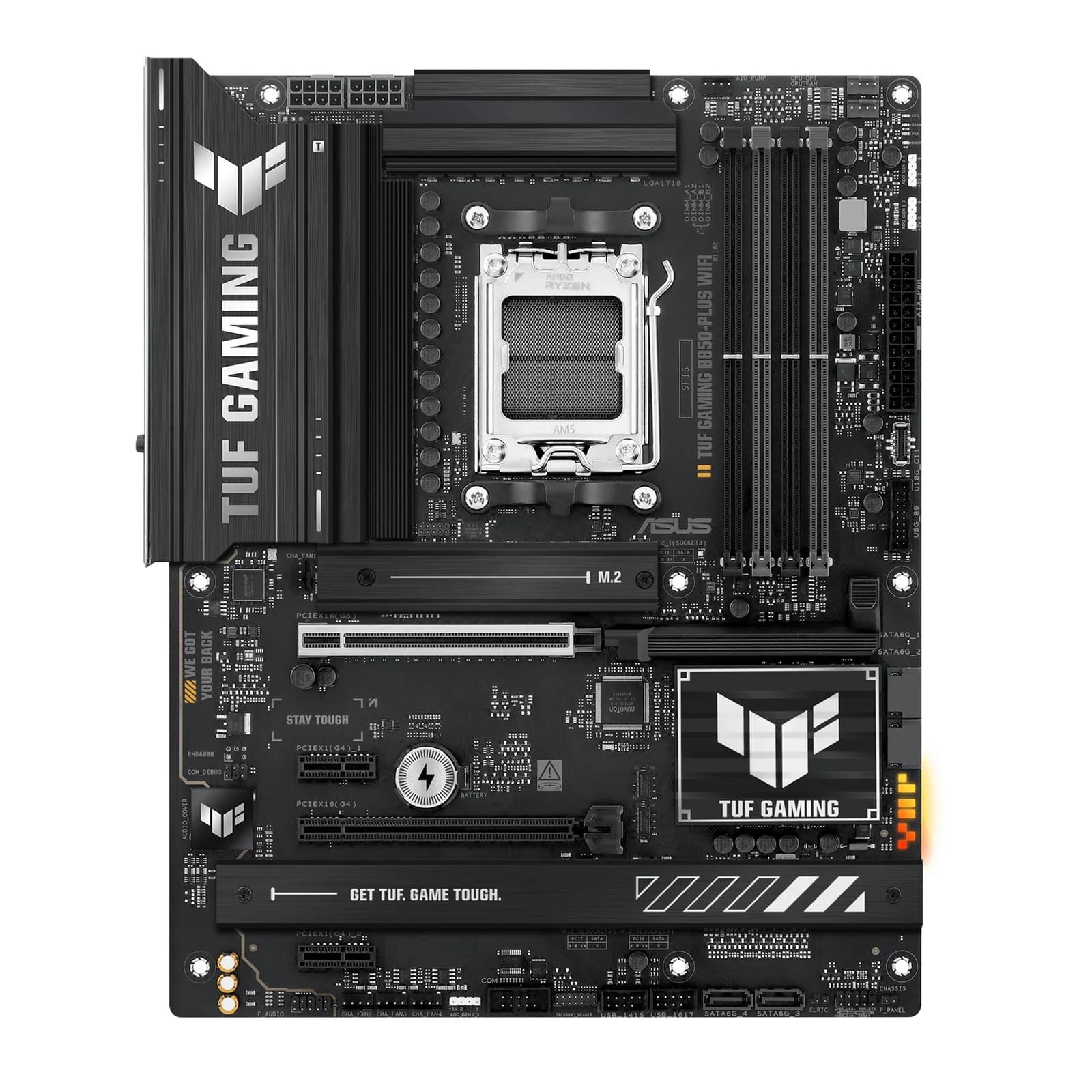

ASUS TUF GAMING B850-PLUS WIFI
ASUS TUF GAMING B850-PLUS WIFI. Производител на процесора: AMD, Стандарт на цокъла за процесор: Цокъл AM5, Съвместими серии процесори: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Поддържани типове памет: DDR5-SDRAM, Максимална вътрешна памет: 192 GB, Тип слотове памет: DIMM. Поддържани интерфейси за устройства за съхранение: M.2, SATA III, Поддържани видове устройства за съхранение: HDD & SSD, RAID поддръжка: 0, 1, 5, 10. Максимална резолюция: 7680 x 4320 пиксела. Тип на Ethernet интерфейса: 2.5 Gigabit Ethernet, Топ Wi-Fi стандарт: Wi-Fi 7 (802.11be), Wi-Fi стандарти: Wi-Fi 7 (802.11be)
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711387781609 |
|---|
| Чипсет | AMD B850 Chipset |
|---|
| Тип памет | 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |
|---|
| Тип на устройството за съхранение | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*;AMD B850 Chipset;M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**;4 x SATA 6Gb/s ports;* Specifications vary by CPU types.;** The PCIEX16(G4) shares bandwidth with M.2_3. The;PCIEX16(G4) will be disabled when M.2_3 runs.;AMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
|---|
| Графичен процесор | 1 x DisplayPort;1 x HDMI™ port |
|---|
| Аудио | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback*;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit |
|---|
| USB портове | Rear USB (Total 10 ports);1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 10Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Слотове за разширение | AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B850 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)***;2 x PCIe 4.0 x1 slots |
| Bluetooth | Bluetooth® v5.4 |
| Безжична технология | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band**;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate |

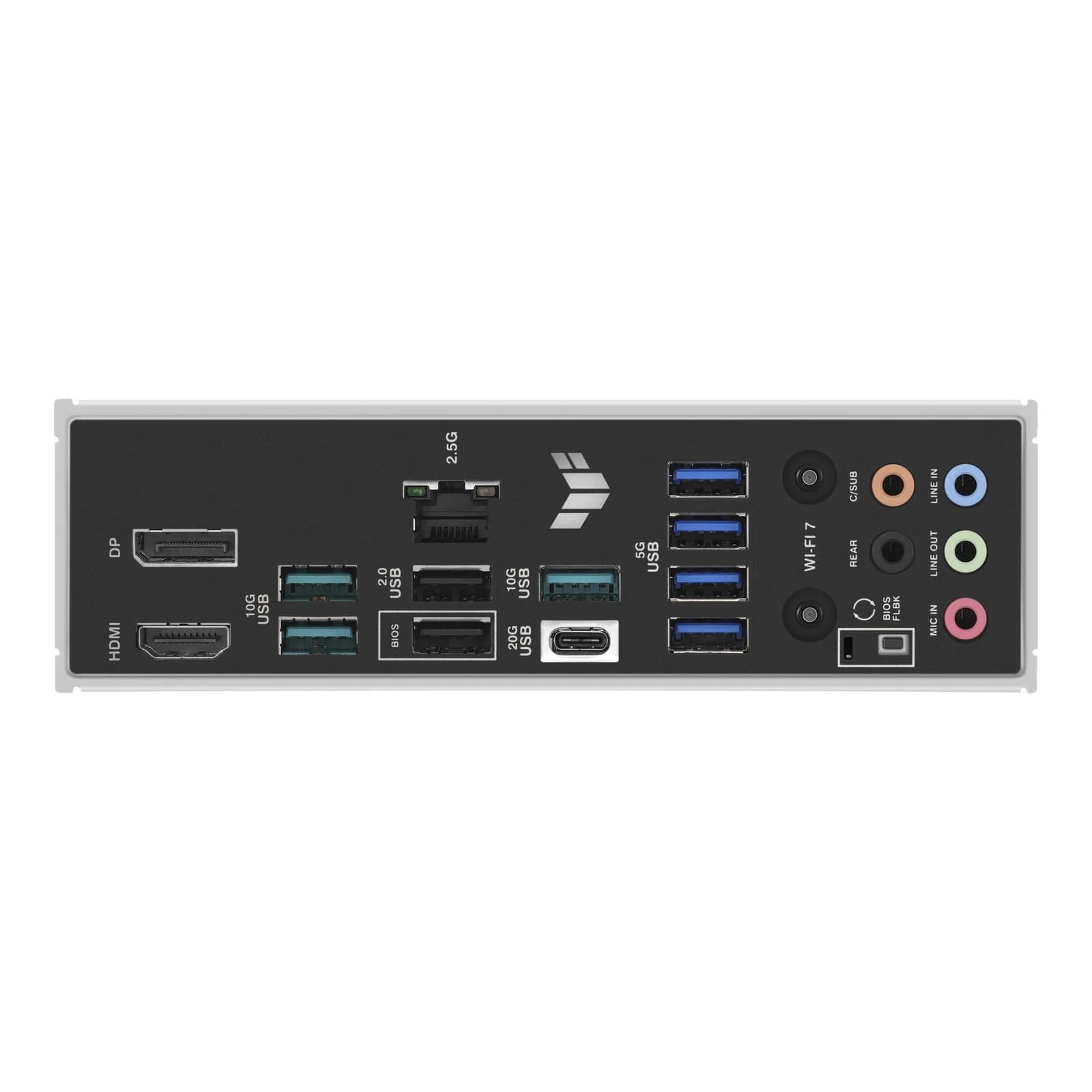

| Портове | 1 x USB 20Gbps port (1 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x BIOS FlashBack™ button |
| Конектор | Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header |
| Форм фактор | ATX Form Factor, 30.5 cm x 24.4 cm |
|---|
| Операционна система | Windows 11 |
|---|---|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
