90MB1DI0-M1EAY0

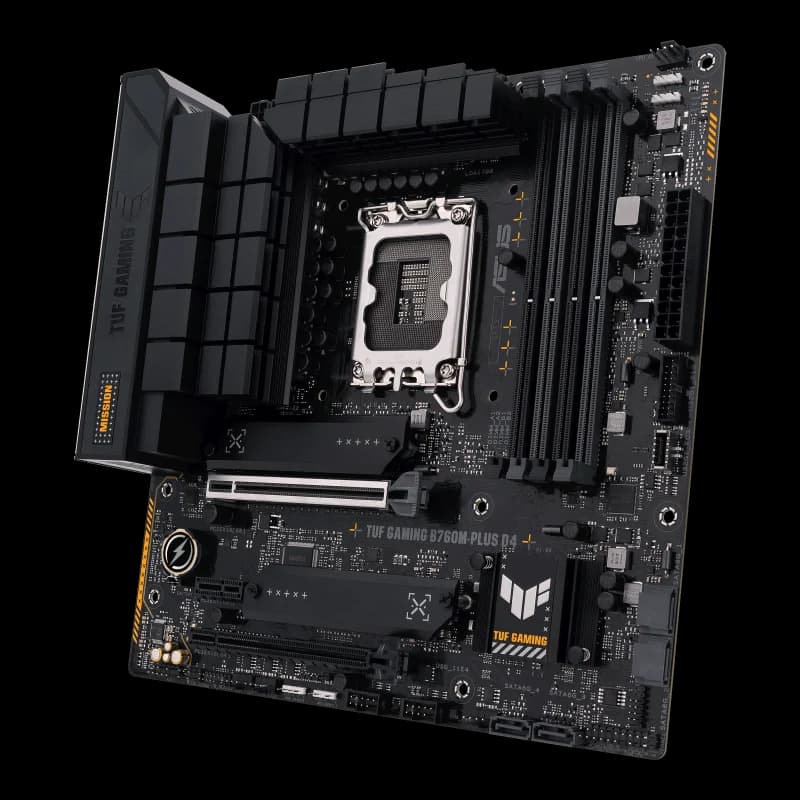

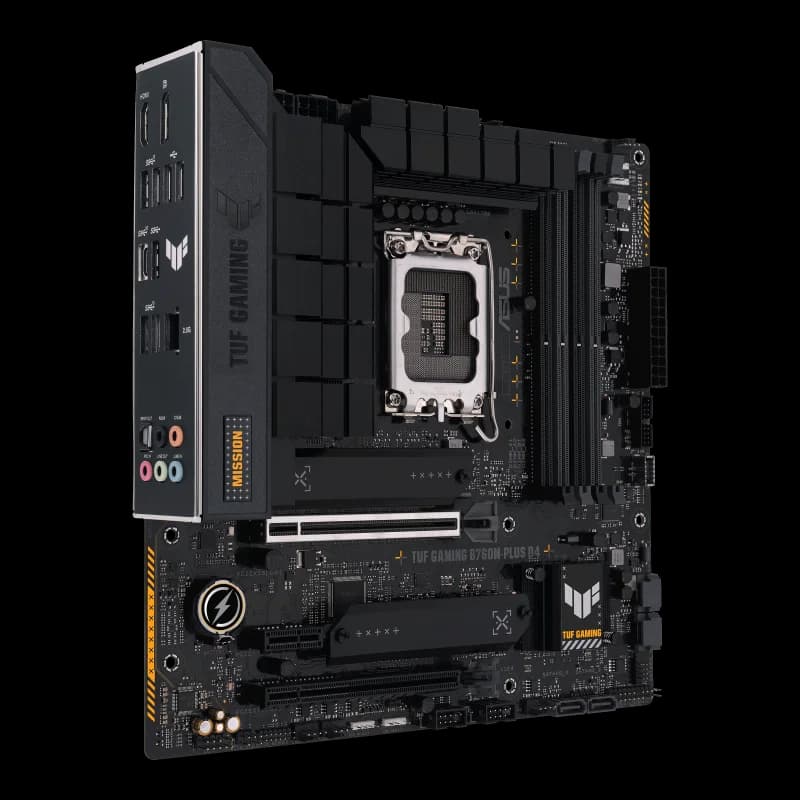

ASUS TUF GAMING B760M-PLUS D4
ASUS B760 4xDDR4 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711387005316 |
|---|
| Чипсет | Intel® B760 Chipset |
|---|---|
| Чипсет | Intel B760 |
| Тип памет | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II |
|---|---|
| Брой слотове за памет DDR4 | 4 |
| Тип на устройството за съхранение | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 1 x DisplayPort**; 1 x HDMI® port*** |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback "; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers |
|---|
| Слотове за разширение | Intel® 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot |
|---|---|
| HDMI | Да |

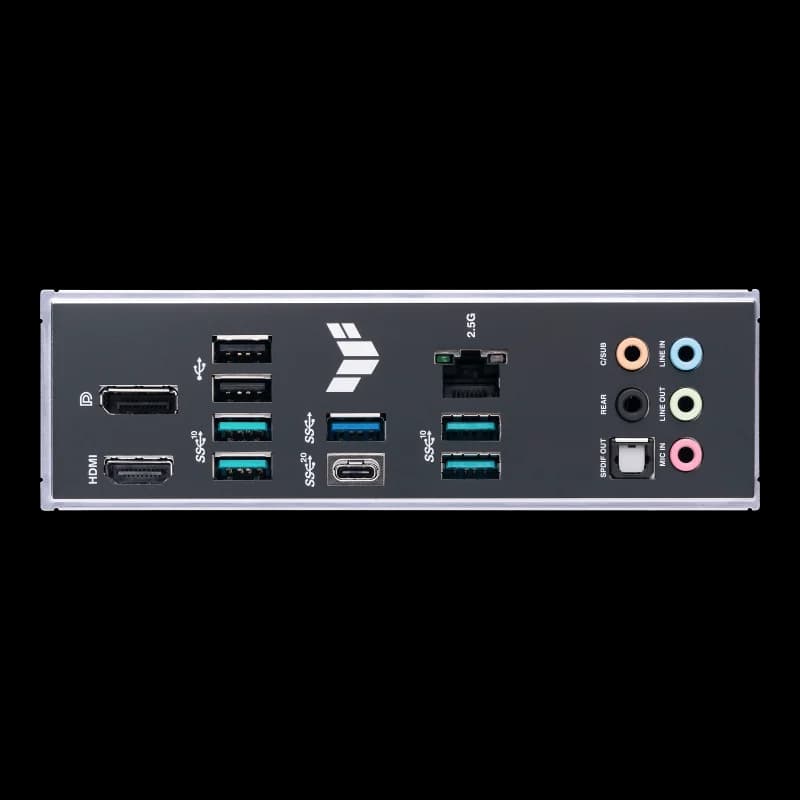

| Портове | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 4 x USB 3.2 Gen 2 ports (4 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port |
| Конектор | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP) ; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header |
| DisplayPort | Да |
| 2 броя M.2 слотове | Да |
| 2 броя PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| Форм фактор | mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|---|
| Операционна система | Windows® 11, Windows® 10 64-bit |
|---|---|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| RAID | RAID Supported / Поддържа RAID |
