90MB1BG0-M0EAY0

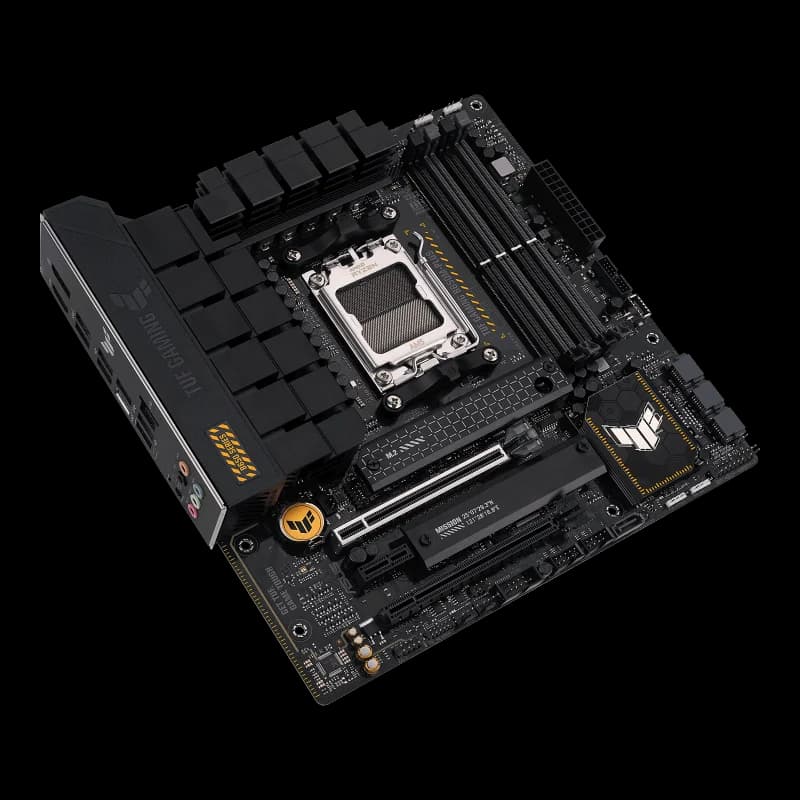

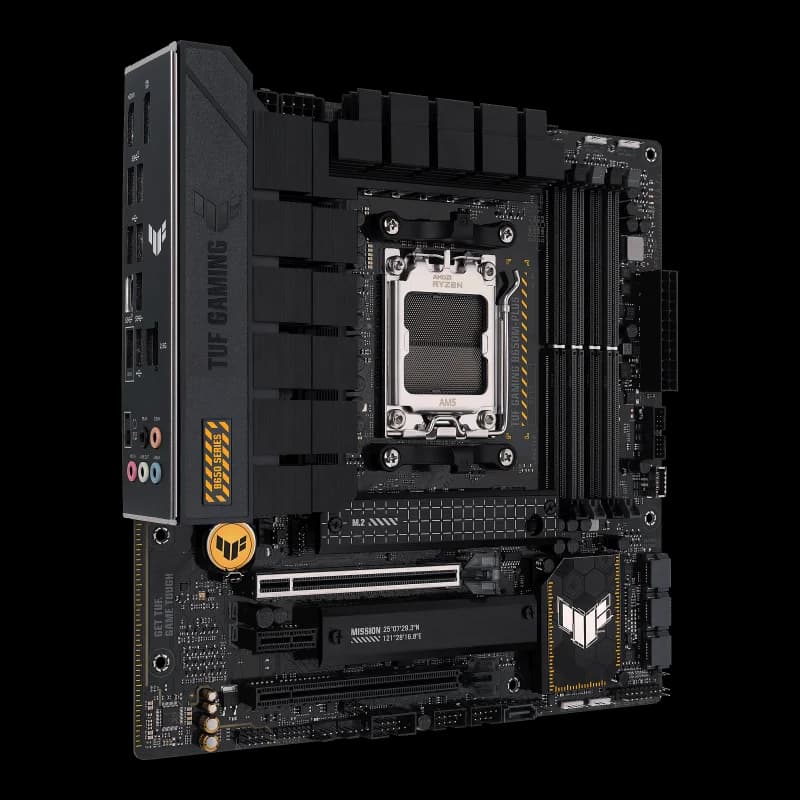

ASUS TUF GAMING B650M-PLUS
ASUS B650 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711081912392 |
|---|
| Чипсет | AMD B650 |
|---|
| Тип памет | 4 x DIMM, Max. 128GB, DDR5; 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO™); OptiMem II |
|---|---|
| Брой слотове за памет DDR5 | 4 |
| Тип на устройството за съхранение | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen™ 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD B650 Chipset; 4 x SATA 6Gb/s ports |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 1 x DisplayPort*; 1 x HDMI® port** |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers |
|---|
| Слотове за разширение | AMD Ryzen™ 7000 Series Desktop Processors*; 1 x PCIe 4.0/3.0 x16 slot; AMD B650 Chipset; 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode); 1 x PCIe 4.0/3.0 x1 slot |
|---|---|
| HDMI | Да |

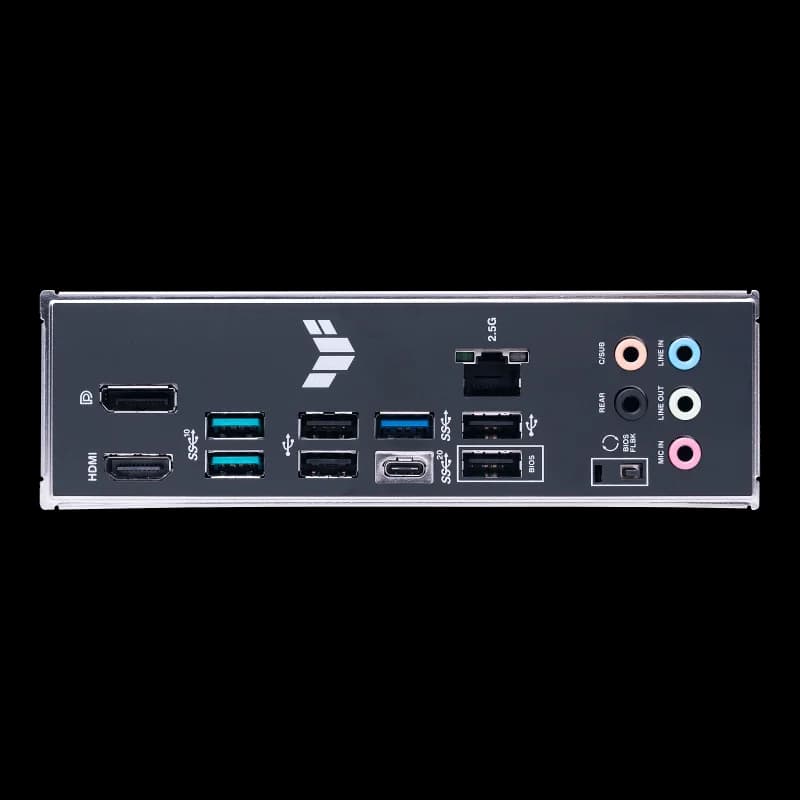

| Портове | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI®port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack™ button |
| Конектор | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ (USB4®) header |
| DisplayPort | Да |
| 2 броя M.2 слотове | Да |
| 2 броя PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| Форм фактор | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|---|
| Операционна система | Windows®11, Windows®10 64-bit |
|---|---|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| RAID | RAID Supported / Поддържа RAID |
