90MB1CJ0-M1EAY0

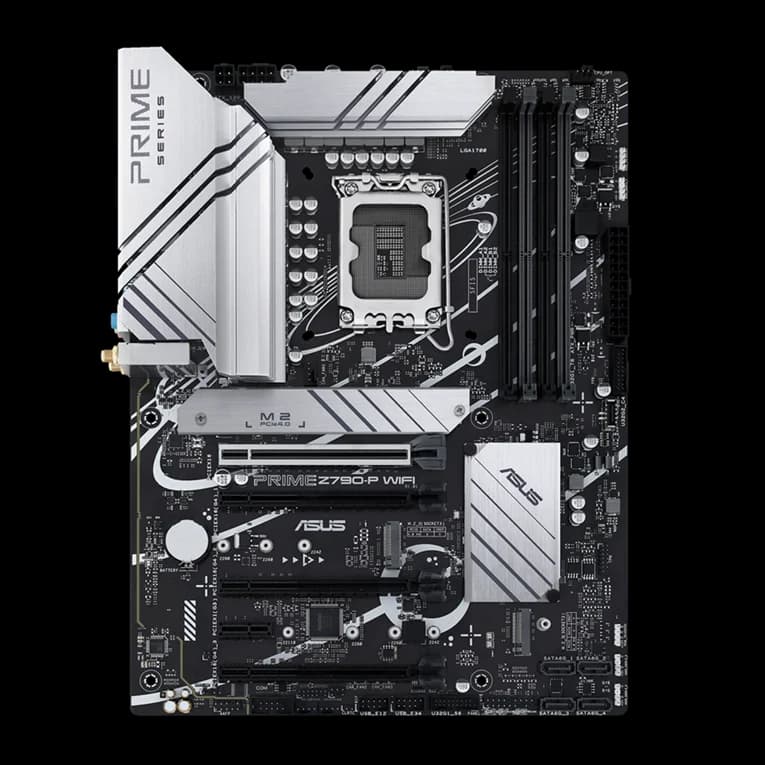

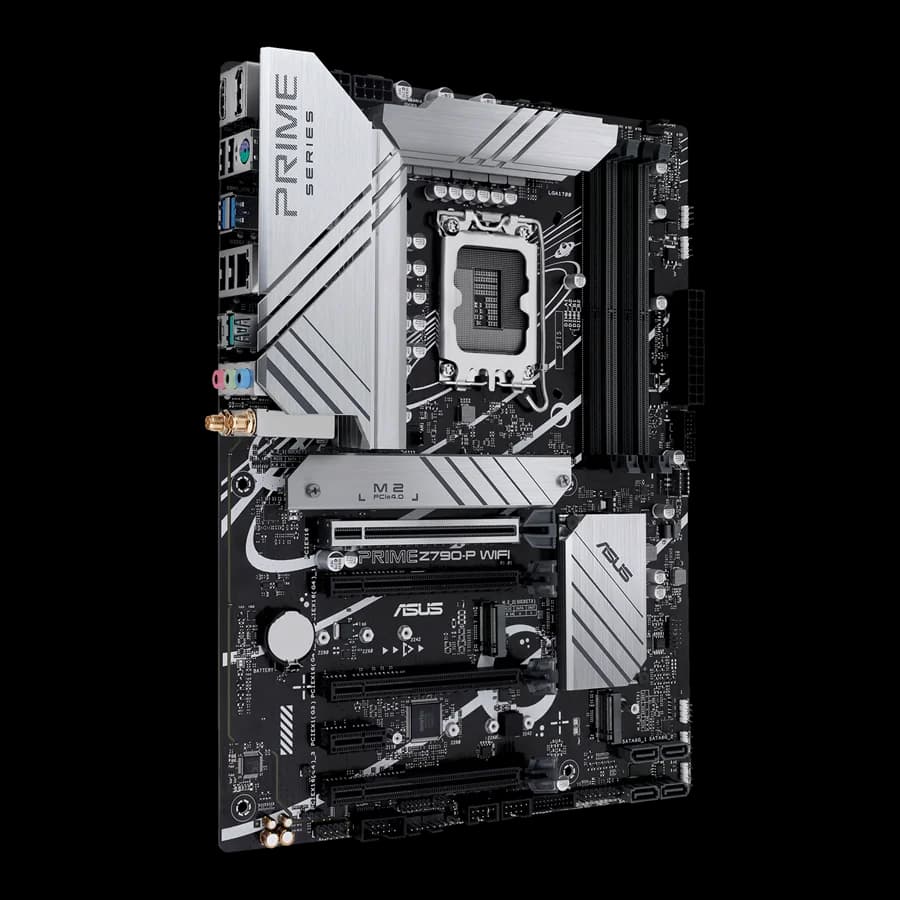

ASUS PRIME Z790-P WIFI
ASUS Z790 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 1xPCIEx1 WiFi
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711081937227 |
|---|
| Чипсет | Intel® Z790 Chipset |
|---|---|
| Чипсет | Intel Z790 |
| Сокет | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Златист and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Тип памет | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP);OptiMem II |
|---|---|
| Брой слотове за памет DDR5 | 4 |
| Тип на устройството за съхранение | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Processors (14th & 13th & 12th Gen)*;M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode);Intel® Z790 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes);4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 1 x DisplayPort;1 x HDMI® port |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
|---|
| USB портове | Rear USB (Total 8 ports);1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);1 x USB 3.2 Gen 2 port (1 x Type-A);2 x USB 3.2 Gen 1 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 9 ports);1 x USB 3.2 Gen 2 connector (supports USB Type-C®);2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Слотове за разширение | Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 5.0 x16 slot Intel® Z790 Chipset;3 x PCIe 4.0 x16 slots (support x4 mode);1 x PCIe 3.0 x1 slot |
| Bluetooth | 5.2 |
| Безжична технология | Wi-Fi 6;2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax);Supports 2.4/5GHz frequency band;Bluetooth® v5.2 |
| HDMI | Да |

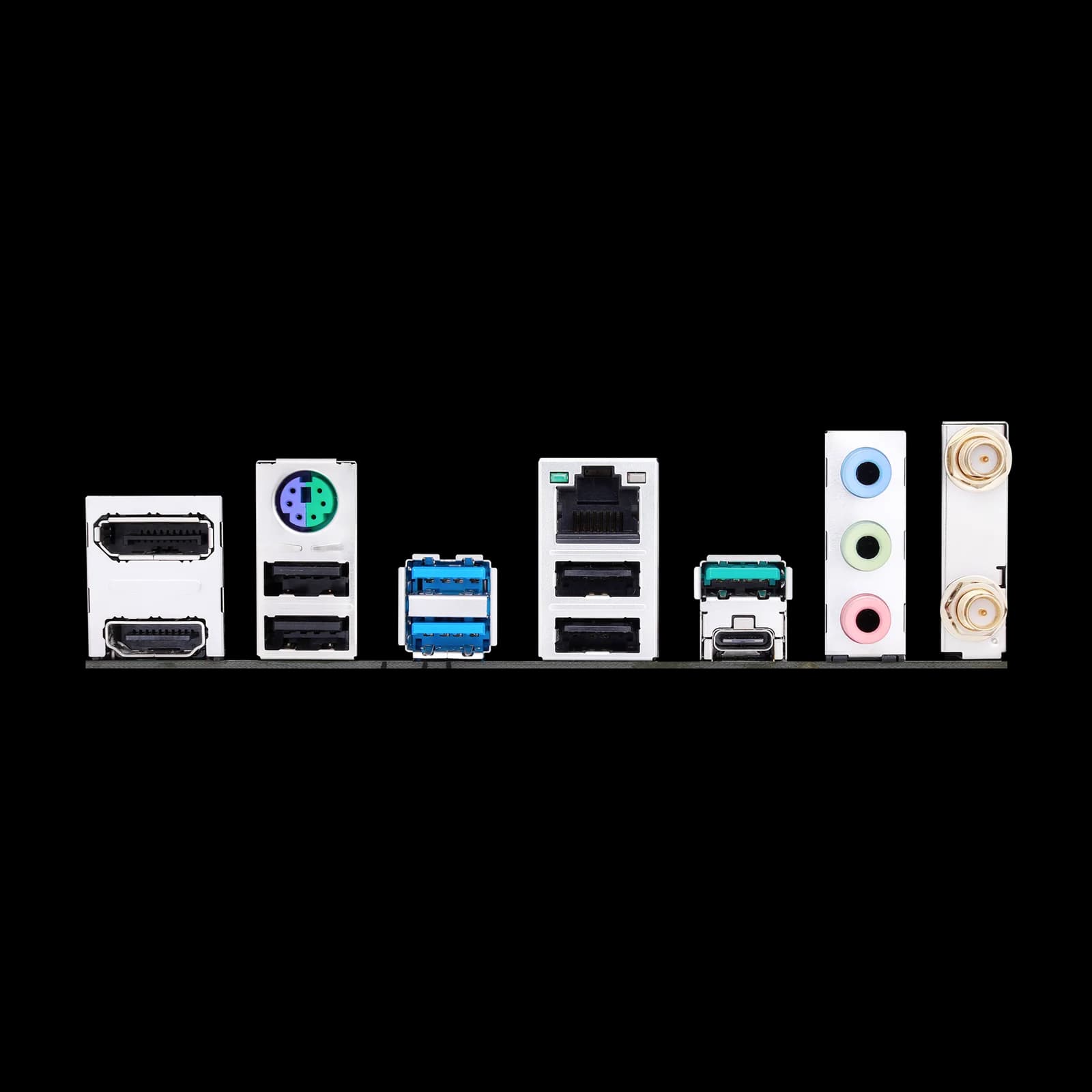

| Портове | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);1 x USB 3.2 Gen 2 port (1 x Type-A);2 x USB 3.2 Gen 1 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Wi-Fi Module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port |
| Конектор | Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;1 x 4-pin +12V Power connector;Storage related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 2 connector (supports USB Type-C®);2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;2 x Aura RGB headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 20-5pin System Panel header;1 x Thunderbolt™ (USB4®) Header |
| DisplayPort | Да |
| 3 броя M.2 слотове | Да |
| 1 брой PCI Express x1 слот | Да |
| 4 броя PCI Express x16 слот | Да |
| Форм фактор | ATX Form Factor;30.5 cm x 23.4 cm |
|---|
| Операционна система | Windows® 11, Windows® 10 64-bit |
|---|---|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| RAID | RAID Supported / Поддържа RAID |
