90MB1A10-M0EAY0

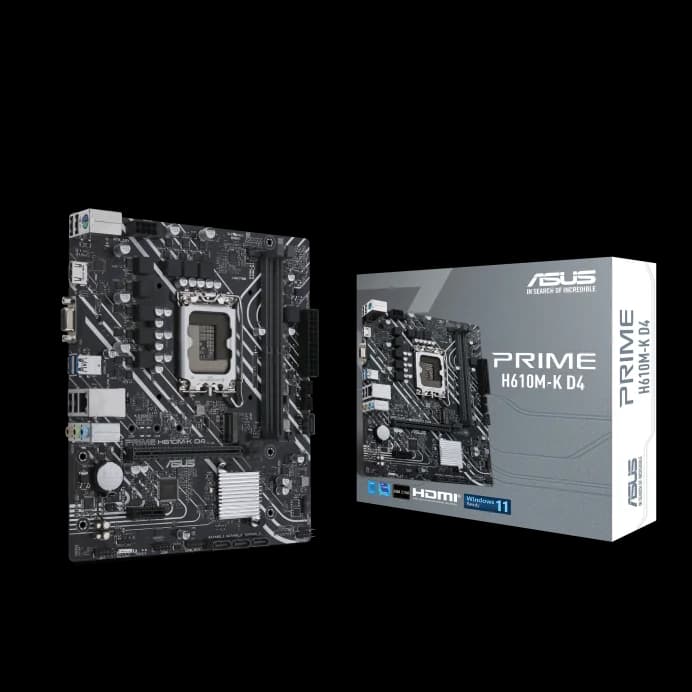

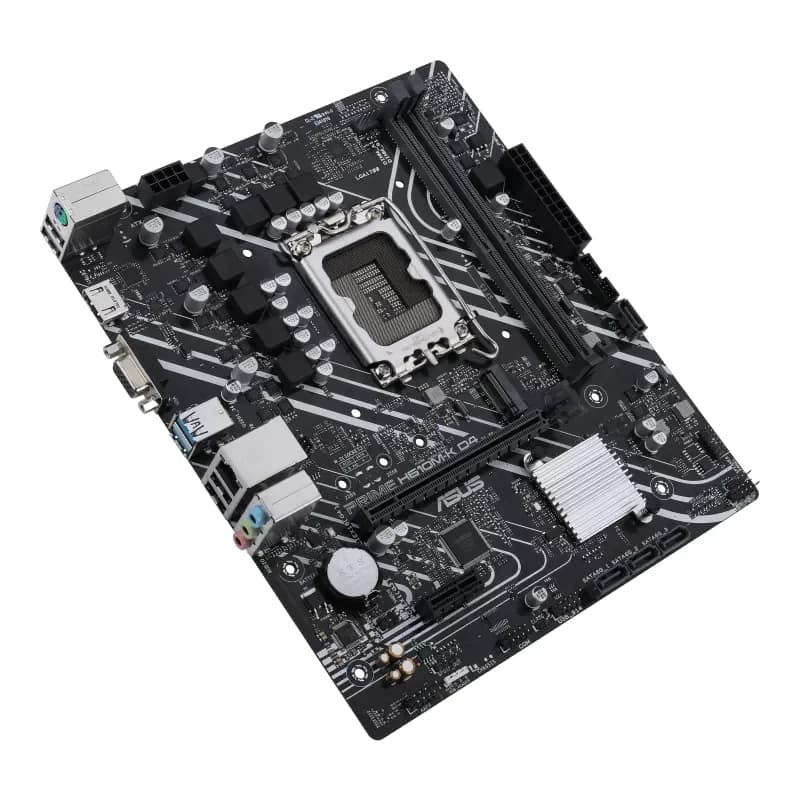

ASUS PRIME H610M-K-D4 /LGA1700
ASUS H610 2xDDR4 4xSATA3 HDMI VGA 1xM2 GLAN 1xPCIEx16 1xPCIEx1
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711081565499 |
|---|
| Чипсет | Intel H610 |
|---|
| Тип памет | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) |
|---|---|
| Брой слотове за памет DDR4 | 2 |
| Тип на устройството за съхранение | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 1 x D-Sub port; 1 x HDMI® port** |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers |
|---|
| Слотове за разширение | Intel® 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® H610 Chipset; 1 x PCIe 3.0 x1 slot |
|---|---|
| HDMI | Да |

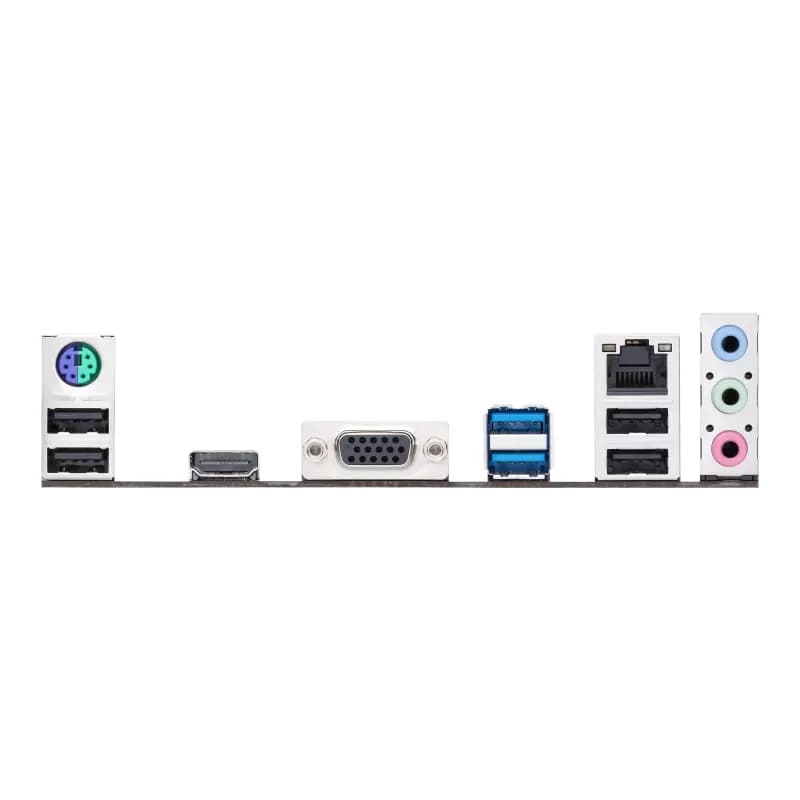

| Портове | 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x D-Sub port; 1 x HDMI® port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port |
| Конектор | 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header |
| 1 брой PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| 1 брой M.2 слот | Да |
| Форм фактор | mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
|---|
| Операционна система | Windows® 11 64-bit, Windows® 10 64-bit |
|---|---|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| VGA(D-SUB) изход | Да |
|---|
