90MB1HN0-M0EAY0
ASUS PRIME H610M-K-D4 ARGB
ASUS PRIME H610M-K D4 ARGB. Производител на процесора: Intel, Стандарт на цокъла за процесор: LGA 1700, Съвместими серии процесори: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Поддържани типове памет: DDR4-SDRAM, Максимална вътрешна памет: 64 GB, Тип слотове памет: DIMM. Поддържани интерфейси за устройства за съхранение: M.2, SATA III, Поддържани видове устройства за съхранение: HDD & SSD. Тип на Ethernet интерфейса: Гигабитов етернет. Компонент за: Персонален компютър, Типоразмер на дънната платка: микро ATX, Серия на чипсет на дънната платка: Intel
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711387460177 |
|---|---|
| Модел | PRIME H610M-K D4 ARGB |
| Чипсет | Intel® H610 |
|---|---|
| Сокет | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Златист and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Тип памет | 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module |
|---|
| Тип на устройството за съхранение | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); 4 x SATA 6Gb/s ports |
|---|
| Графичен процесор | 1 x HDMI™ port**; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports 4K@60Hz as specified in HDMI 2.1. |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| USB портове | Rear USB (Total 6 ports); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 3 ports); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 1 additional USB 2.0 port |
|---|---|
| Слотове за разширение | Intel® Core™ Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot (supports x16 mode); Intel® H610 Chipset; 1 x PCIe 3.0 x1 slot; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |

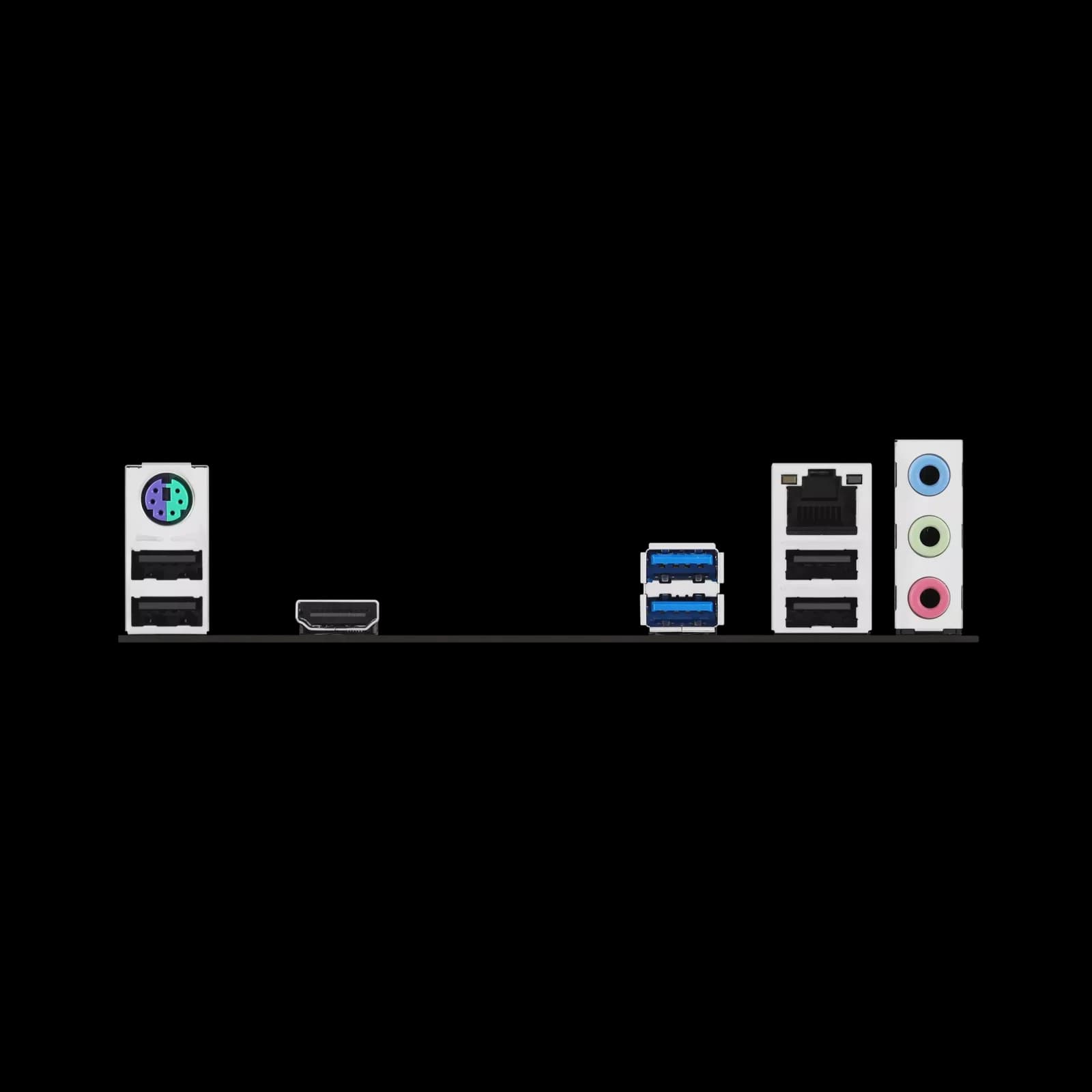

| Портове | 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI™ port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 keyboard/mouse combo port |
| Конектор | Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage Related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 1 additional USB 2.0 port; Miscellaneous; 2 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header |
| Форм фактор | micro-ATX Form Factor; 23.4 cm x 20.3 cm |
|---|
| Операционна система | Windows® 11, Windows® 10 64-bit |
|---|---|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
