90MB1JT0-M0EAY0

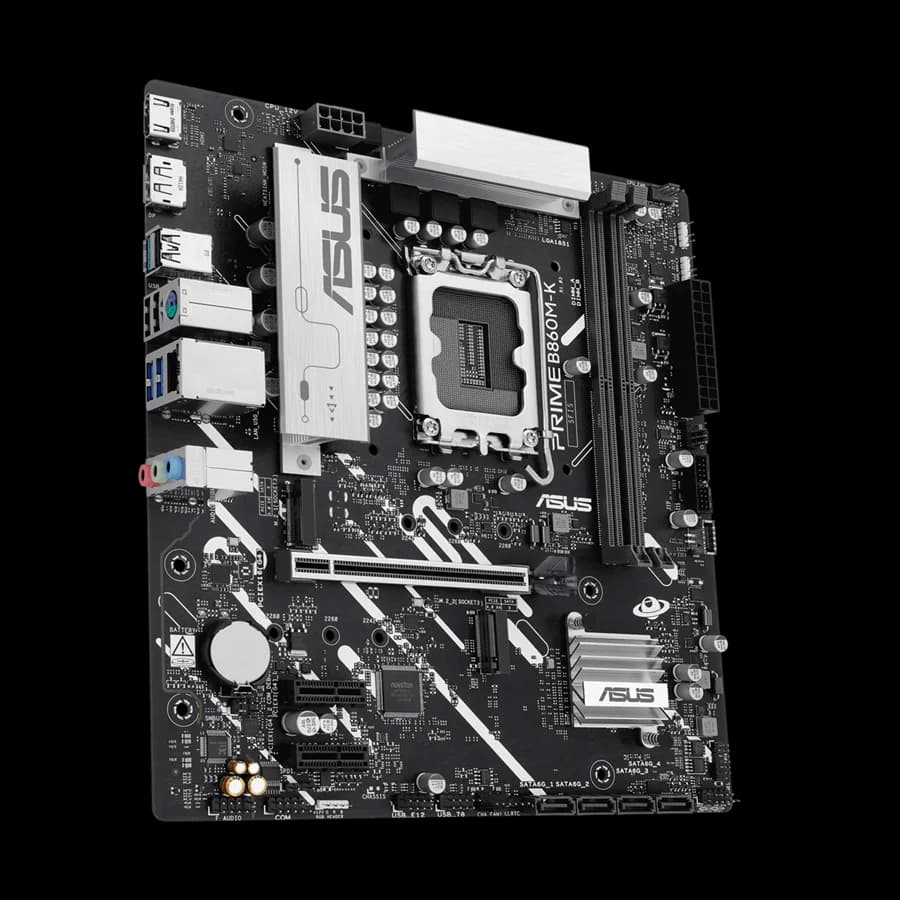

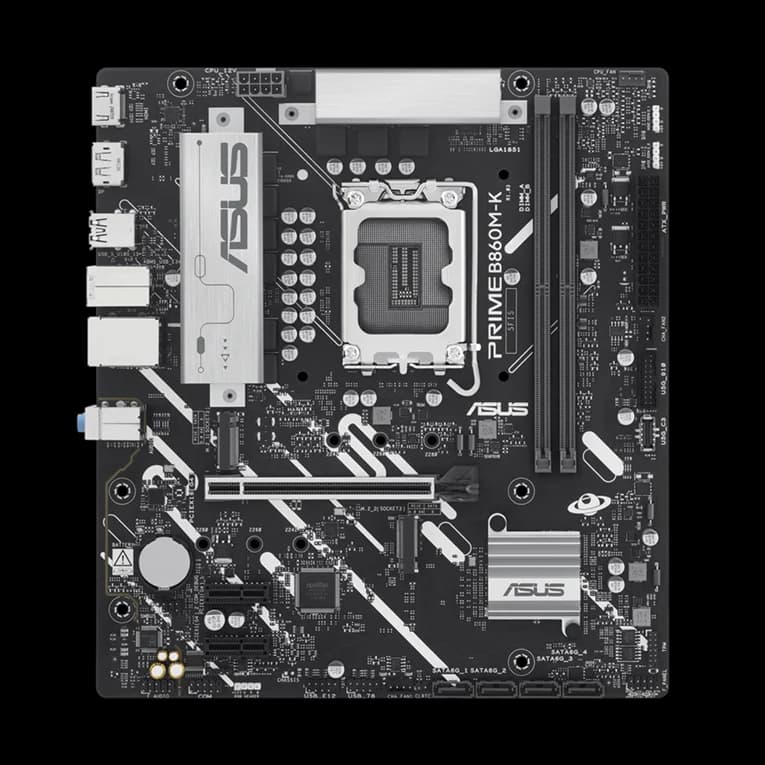

ASUS PRIME B860M-K
ASUS B860 2xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711387808498 |
|---|
| Чипсет | Intel® B860 Chipset |
|---|---|
| Чипсет | Intel B860 |
| Сокет | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Тип памет | 2 x DIMM slots, max. 128GB, DDR5;Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII) |
|---|---|
| Брой слотове за памет DDR5 | 2 |
| Тип на устройството за съхранение | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 1 x DisplayPort;1 x HDMI™ port |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
|---|
| USB портове | Rear USB (Total 6 ports);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Слотове за разширение | Intel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® B860 Chipset;2 x PCIe 4.0 x1 slots |
| HDMI | Да |

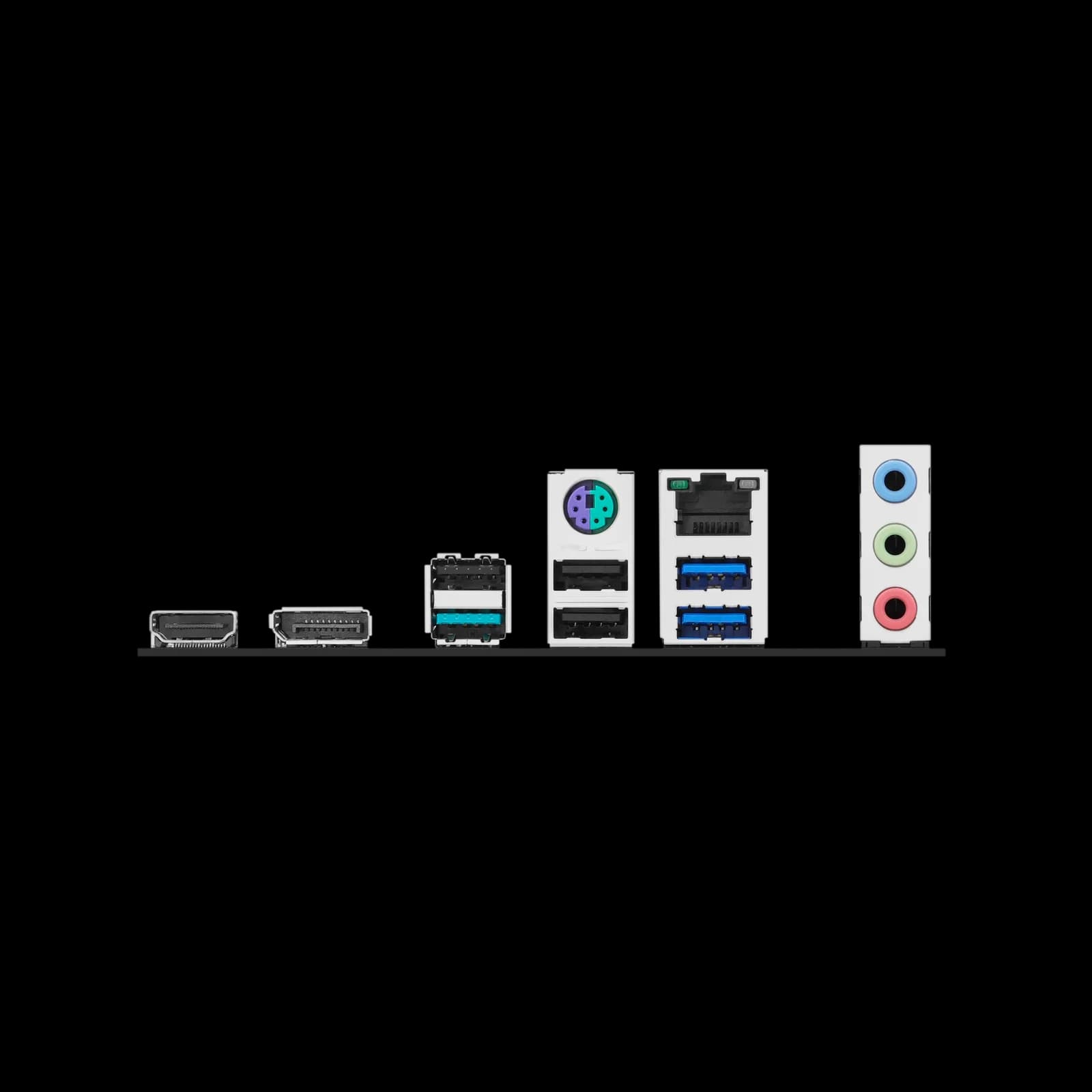

| Портове | 1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);1 x DisplayPort;1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port |
| Конектор | Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connectorStorage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;2 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header1 x SPI TPM header (14-1 pin);1 x 10-1 pin Front Panel System header |
| DisplayPort | Да |
| 2 броя M.2 слотове | Да |
| 1 брой PCI Express x16 слот | Да |
| 2 броя PCI Express x1 слот | Да |
| Форм фактор | micro-ATX Form Factor;24.4cm x 22.2cm |
|---|
| Операционна система | Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) |
|---|---|
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| RAID | RAID Supported / Поддържа RAID |
