90MB1JY0-M0EAY0

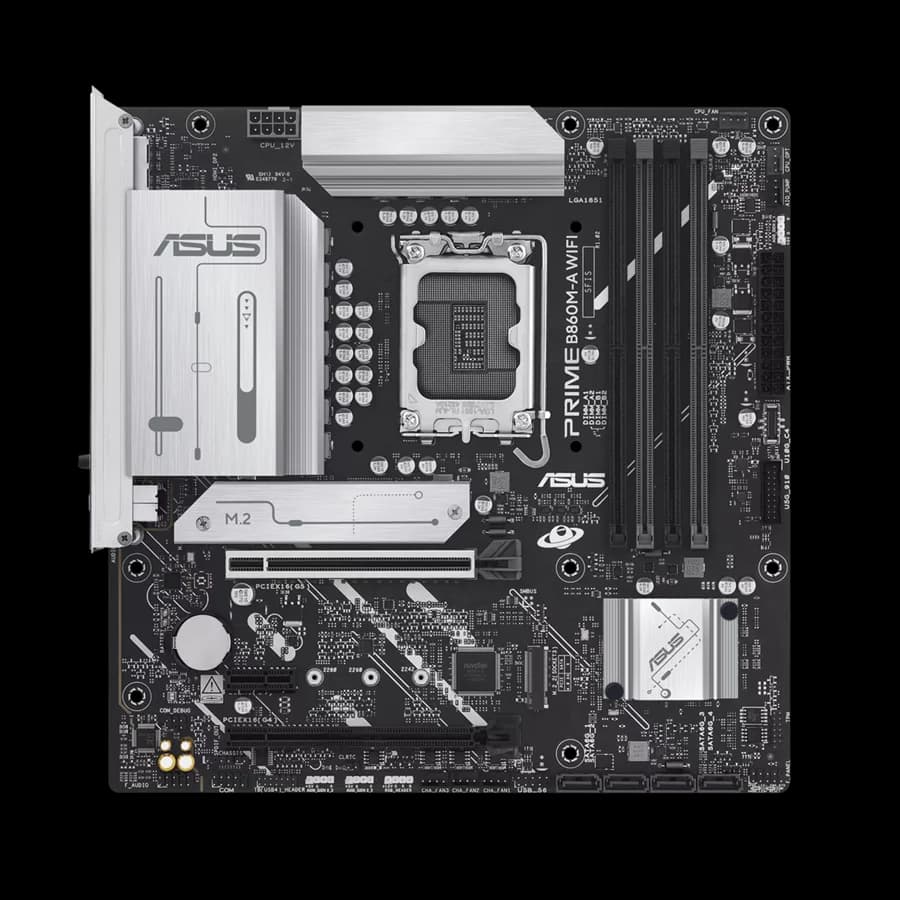

ASUS PRIME B860M-A WIFI
ASUS B860 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711387806289 |
|---|
| Чипсет | Intel® B860 Chipset |
|---|---|
| Чипсет | Intel B860 |
| Сокет | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Тип памет | 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII) |
|---|---|
| Брой слотове за памет DDR5 | 4 |
| Тип на устройството за съхранение | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel®B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes);4 x SATA 6Gb/s ports |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | 2 x DisplayPort;1 x HDMI™ port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output |
|---|
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers |
|---|
| USB портове | Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A );2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|---|---|
| Слотове за разширение | Intel® Core™ Ultra Processors(series 2);1 x PCIe 5.0 x16 slot;Intel® B860 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);1 x PCIe 4.0 x1 slot |
| Bluetooth | 5.3 |
| Безжична технология | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band;Bluetooth® v5.3 |
| HDMI | Да |
| Портове | 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A );2 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks |
| Конектор | Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 10Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additionalUSB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin Front System Panel header;1 x Thunderbolt™ (USB4®) header |
| DisplayPort | Да |
| 2 броя M.2 слотове | Да |
| 2 броя PCI Express x16 слот | Да |
| 1 брой PCI Express x1 слот | Да |
| Форм фактор | micro-ATX Form Factor, 24.4 cm x 24.4 cm |
|---|
| Операционна система | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
|---|---|
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| RAID | RAID Supported / Поддържа RAID |
