90MB1600-M0EAY0

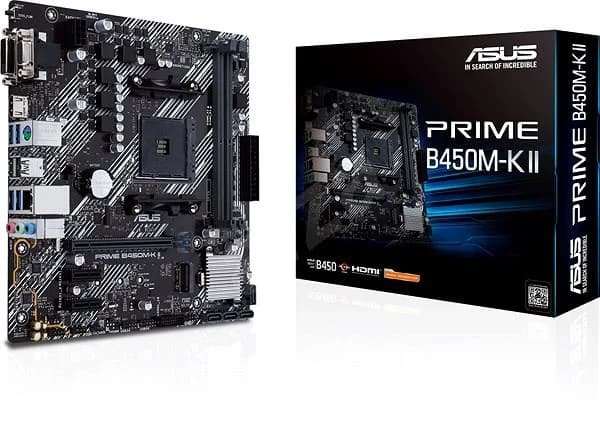

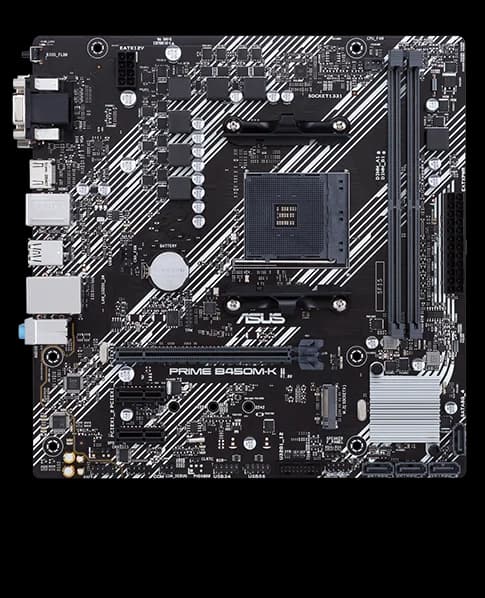

ASUS PRIME B450M-K II /AM4
ASUS Prime B450M-K II. Производител на процесора: AMD, Стандарт на цокъла за процесор: Гнездо AM4, Съвместими серии процесори: AMD Ryzen 2000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series. Поддържани типове памет: DDR4-SDRAM, Максимална вътрешна памет: 64 GB, Тип слотове памет: DIMM. Поддържани интерфейси за устройства за съхранение: M.2, PCI Express 3.0, SATA III, RAID поддръжка: 0, 1, 10. Тип на Ethernet интерфейса: Гигабитов етернет. Компонент за: Персонален компютър, Типоразмер на дънната платка: микро ATX, Серия на чипсет на дънната платка: AMD
| Марка | ASUS |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4718017932387 |
|---|
| Чипсет | AMD B450 |
|---|
| Тип памет | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors; 2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU. |
|---|
| Тип на устройството за съхранение | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports; 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode); AMD B450 chipset : 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10 |
|---|
| Графичен процесор | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *; 1 x D-Sub; 1 x DVI-D; 1 x HDMI 2.0b |
|---|
| Аудио | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature : - LED-illuminated design; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors; * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
|---|
| Слотове за разширение | 3rd/2nd/1st Gen AMD Ryzen™ Processors; 1 x PCIe 3.0 x16 (x16 mode); 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0 x16 (x8 mode); AMD Athlon™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0 x16 (x4 mode); AMD B450 chipset; 2 x PCIe 2.0 x1 |
|---|---|
| Портове | 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 4 x USB 3.2 Gen 1 (blue) Type-A; 2 x USB 2.0; 3 x Audio jack(s); 1 x BIOS FlashBack™ Button(s) |
| Конектор | 1 x CPU Fan connector(s) (1 x 4 -pin); 1 x Chassis Fan connector(s) (1 x 4 -pin); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x SPI TPM header; 1 x COM port(s) connector(s); 4 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x System panel(s); 1 x Clear CMOS jumper(s); 1 x COM port header; 1 x Speaker connector |
| Форм фактор | mATX Form Factor; 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
|---|
| Операционна система | Windows® 10 64-bit; Windows® 7 64-bit * |
|---|---|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
