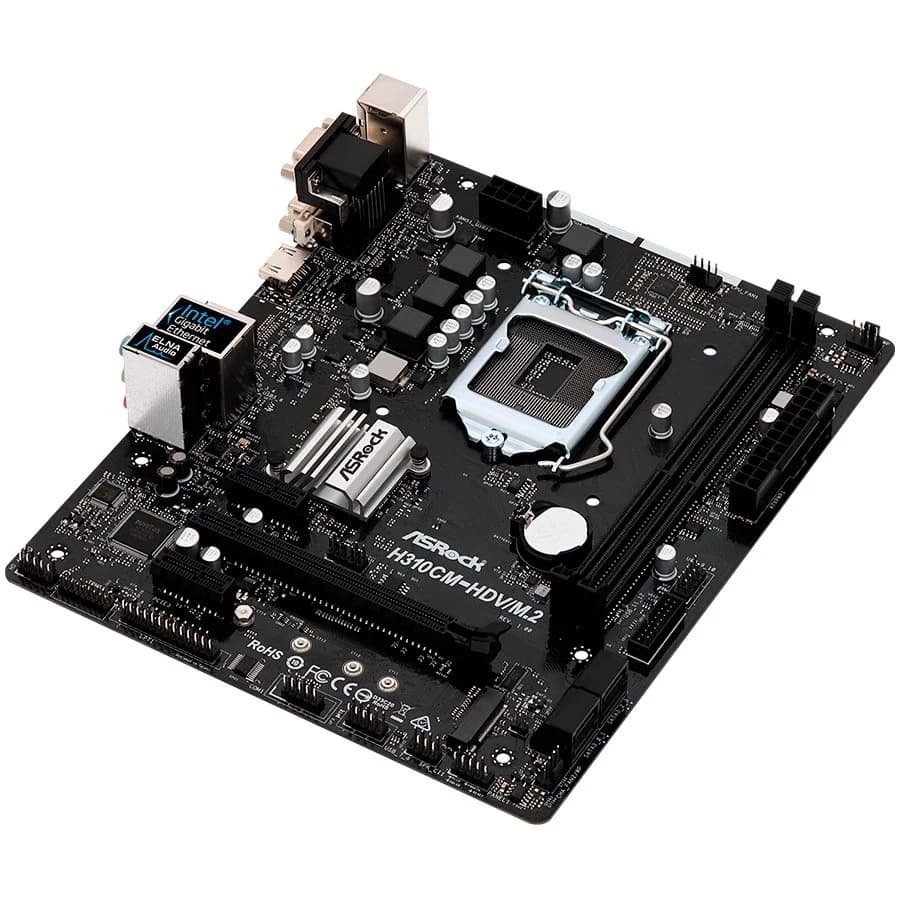

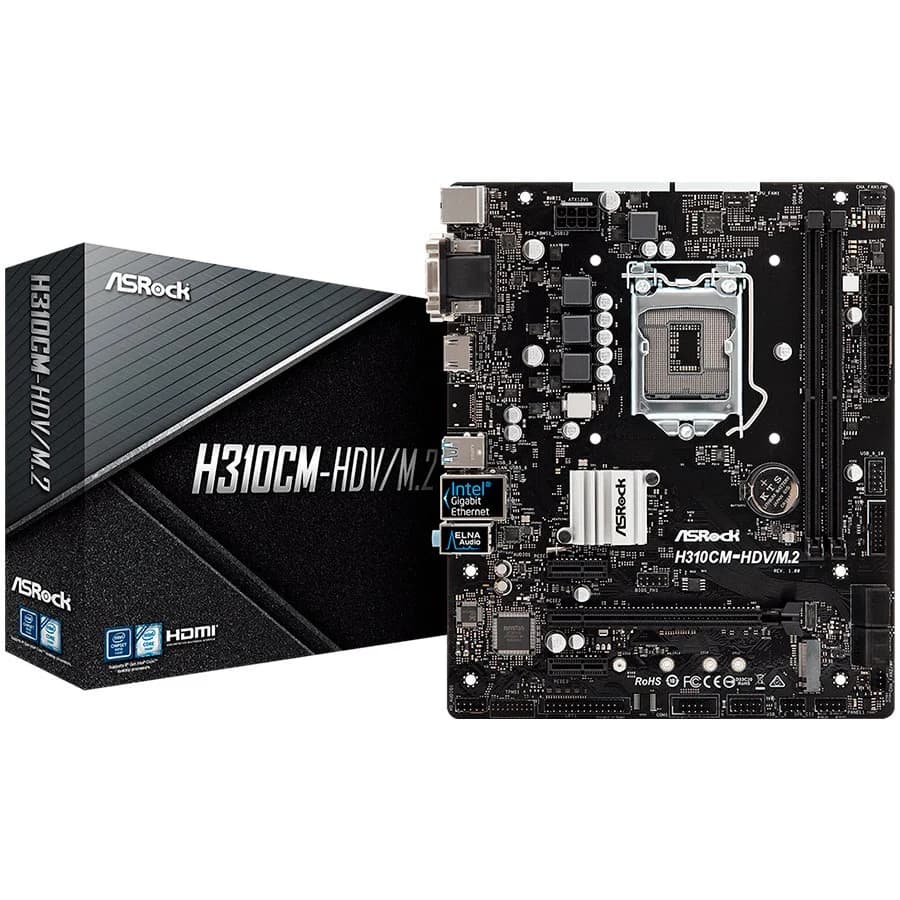

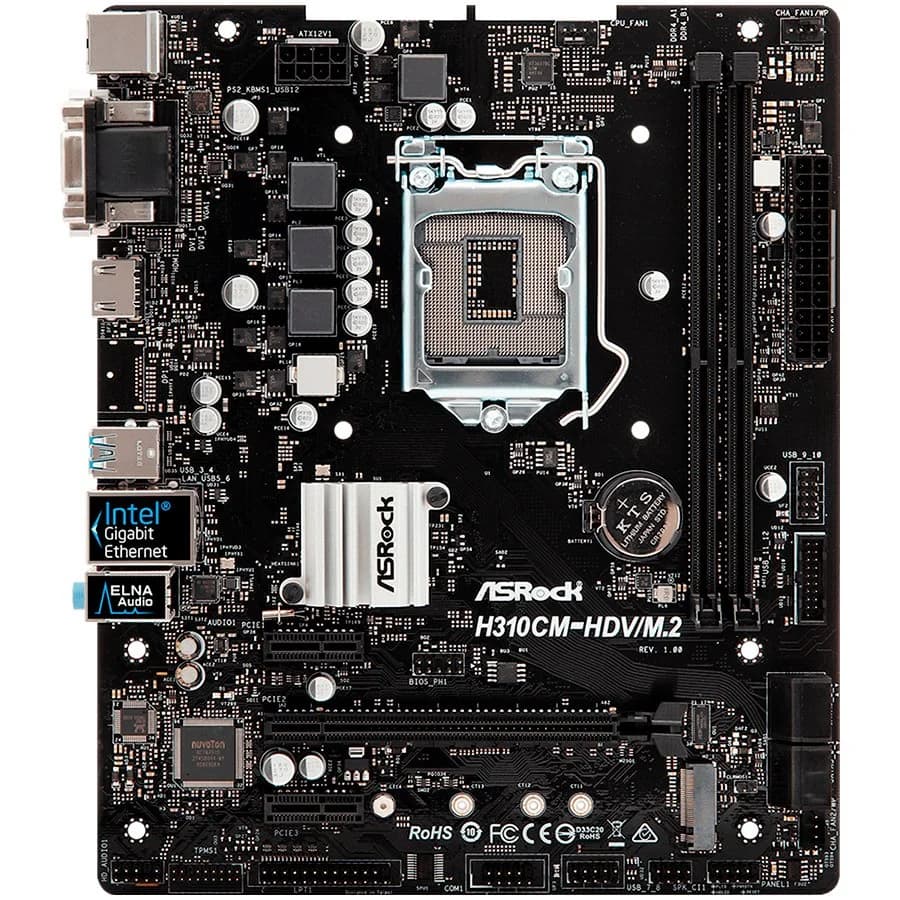

H310CM-HDV/M.2
ASROCK Main Board Desktop H310 (S1151, 2xDDR4,1xPCIe x16,2xPCI Ex1, 4 SATA3 ,1xM.2,GLAN,VGA,DVI,HDMI,USB 3.1 ) mATX retail
| Марка | ASROCK |
|---|---|
| Гаранция | 2 години гаранция |
| Сертификати | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|---|
| Warranty Term (month) | 24 month(s) |
| Warranty Products Returnable | Да |
| Warranty Validation Criteria | Serial Number |
| Height (mm) | 188 mm |
| Width (mm) | 226 mm |
| Mainboard Features | Smart Fan, VR Ready, NVMe Support |
| Чипсет | Intel H310 |
|---|---|
| CPU Socket Standard | Socket 1151 |
| CPU Maximum Quantity Supports | 1 |
| Max. CPU Bus Clock Rate | 5 GT/sec |
| Тип памет | DDR4 SDRAM |
|---|---|
| Честота на паметта | 2133MHz(PC4-17000) , 2400MHz(PC4-19200) , 2666MHz(PC4-21300) |
| Форм фактор на паметта | DIMM 288-pin |
| Memory Features | Two DDR Channels , Unbuffered , XMP 2.0 |
| Maximum Installable System Memory Storage Capacity | 32 GB |
| Memory Slot Total Quantity | 2 |
| Audio Interface | 3 (3.5-mm minijack) |
|---|---|
| Audio Output Mode | 7.1 Channel Surround |
| Audio Chipset | Realtek ALC887 |
| Audio Integrated | да |
| Compliant Audio Standards | High Definition Audio , ELNA Premium Audio Capacitors |
| USB портове | 4 (4-pin USB (type A)) |
|---|---|
| HDMI | 1 (HDMI (Type A)) |
| Cable Included | 2 x SATA Data Cables |
| USB 3.1 Gen 1 | 2 (USB 3.1 (type A)) |
| Power Connectors Type | 24+8 pin |
| LAN | 1 (RJ-45) |
|---|---|
| LAN Chipset | Intel i219V |
| LAN Integrated | да |
| Data Link Protocol Supports | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Форм фактор | Micro ATX |
|---|---|
| Box Weight Brutto (kg) | 16 kg |
| BIOS Features | SMBIOS 2.7 Support , 128Mb AMI UEFI Legal BIOS with GUI Support , ACPI 6.0 Support |
|---|---|
| BIOS Type | AMI |
| Тегло на опаковката | 0.6 kg |
|---|---|
| Брой на палет | 1 |
| Pack Weight Brutto (kg) | 0.8 kg |
| Packs in Box | 20 |
| Pack Weight Netto (kg) | 0.6 kg |
| Package Type | Retail |
| VGA | 1 (15-pin D-sub) |
|---|---|
| PS/2 | 1 |
| PCI Express 3.0 x16 | 1 |
| DVI | 1 (DVI-D) |
| PCI Express 2.0 x1 | 2 |
| Device Location | Integrated |
| Included Accessories | I/O Shield , CD, Software , Quick Start Guide , Screws |
| Provides Error Checking Method | non-ECC |
| Integrated | <b>Storage Controller:</b>, SATA (4), <b>Storage Controller:</b>, PCIe 2.0 x4/SATA (1 x M.2 (Key M)), |
| Supports Central Processor Unit | Intel Celeron , Intel Pentium , Intel Core i5 , Intel Core i3 , Intel Core i7 |
| Hardware Monitoring | Chassis Fan Tachometer , CPU Fan Tachometer , CPU Temperature , CPU Voltage , System Temperature , System Voltage , Chassis Temperature Sensing , CPU Fan multi-speed control , Chassis Fan multi-speed control |
