B860 LIVEMIXER WIFI
ASROCK B860 LIVEMIXER WIFI
ASROCK B860 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 2xPCIEx16 WiFi
| Марка | ASROCK |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4711581490147 |
|---|
| Чипсет | Intel® B860 |
|---|---|
| Чипсет | Intel B860 |
| Сокет | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for dedicated AI acceleration |
| Тип памет | Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC);Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 256GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x |
|---|---|
| Брой слотове за памет DDR5 | 4 |
| Тип на устройството за съхранение | CPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset:;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|---|
| Аудио | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);Impedance Sensing on Rear Out port;Individual PCB Layers for R/L Audio Channel;Nahimic Audio |
|---|
| USB портове | CPU:;- 1 x Thunderbolt™ 4/USB4 Type-C (Rear);Chipset:;- 1 x USB 3.2 Gen1 Type-C (Front);- 10 x USB 3.2 Gen1 Type-A (6 Rear, 4 Front);- 10 x USB 2.0 (6 Rear, 4 Front) |
|---|---|
| Слотове за разширение | CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Bluetooth | 5.3 |
| Безжична технология | 802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe;Supports Dual-Band 2x2 with extended 6GHz band support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.3;Supports MU-MIMO |
| HDMI | Да |

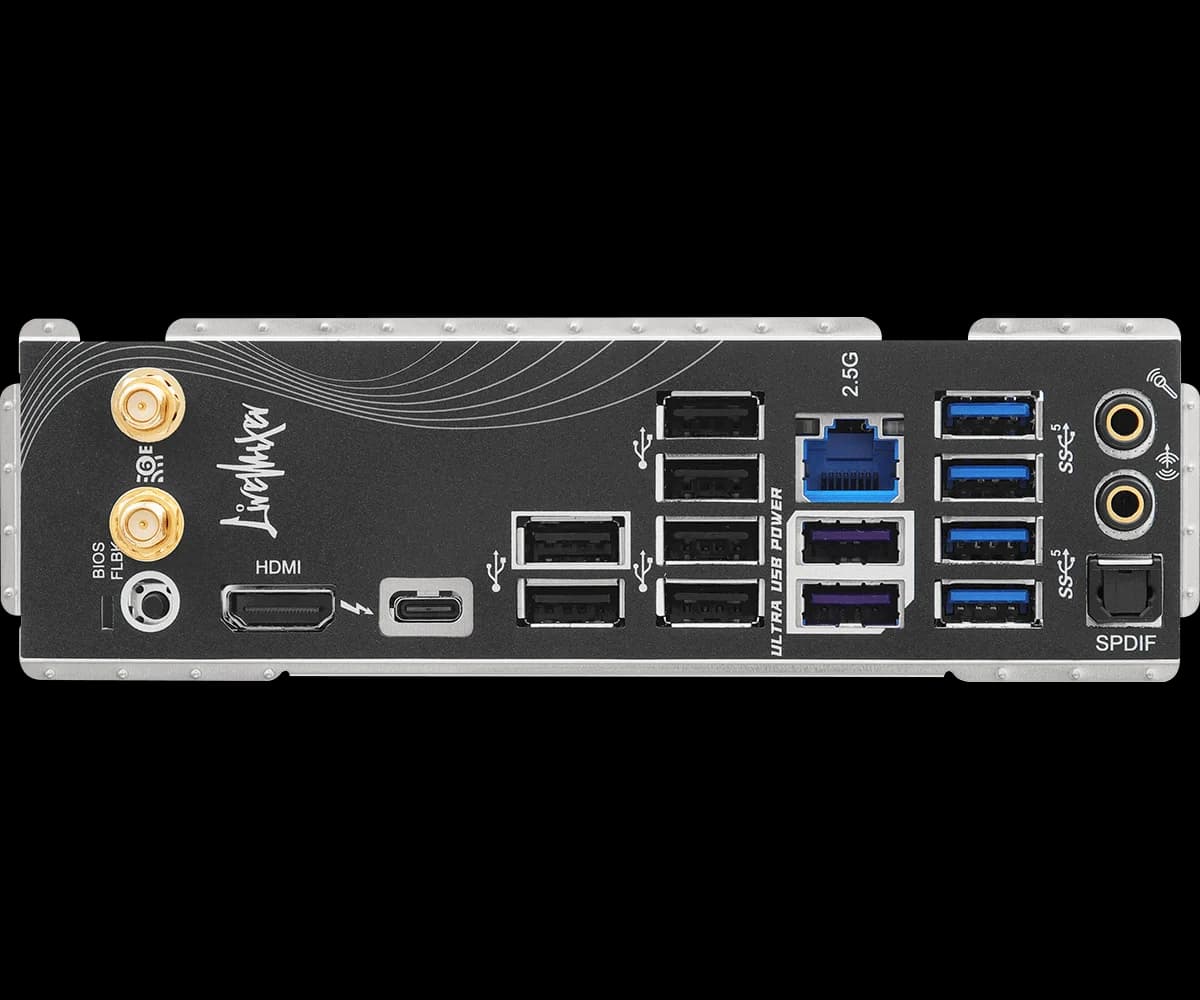

| Портове | 2 x Antenna Ports;1 x HDMI Port;1 x Optical SPDIF Out Port;1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s);6 x USB 3.2 Gen1 Ports;6 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;1 x Line Out Jack (Gold Audio Jack);1 x Microphone Input Jack (Gold Audio Jack) |
| Конектор | 1 x Thermistor Cable Header;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen1 Header |
| 2 броя PCI Express x16 слот | Да |
| 3 броя M.2 слотове | Да |
| Форм фактор | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|---|
| Операционна система | Microsoft Windows® 11 64-bit |
|---|---|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| RAID | RAID Supported / Поддържа RAID |
