B760 PRO RS/D4

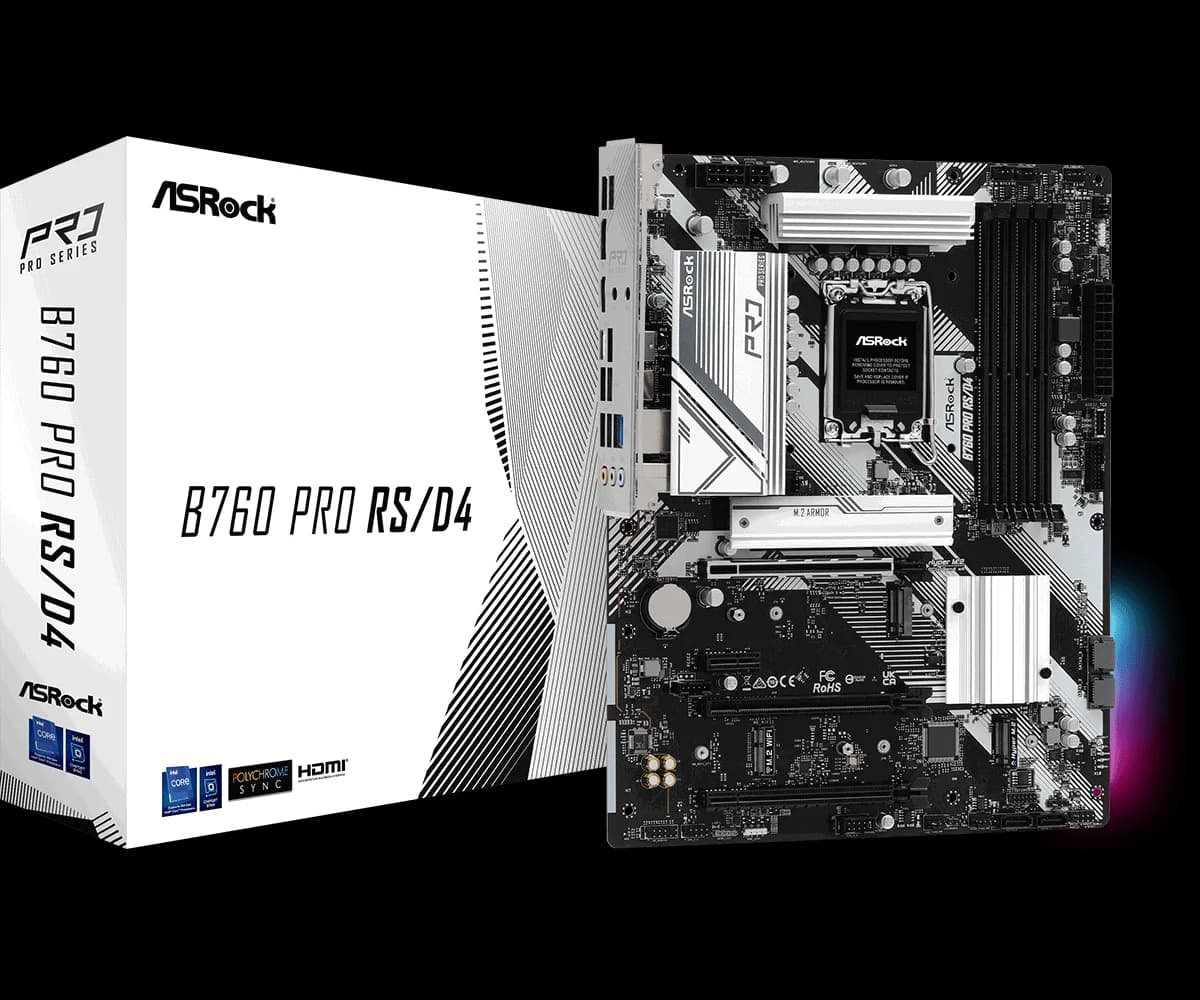

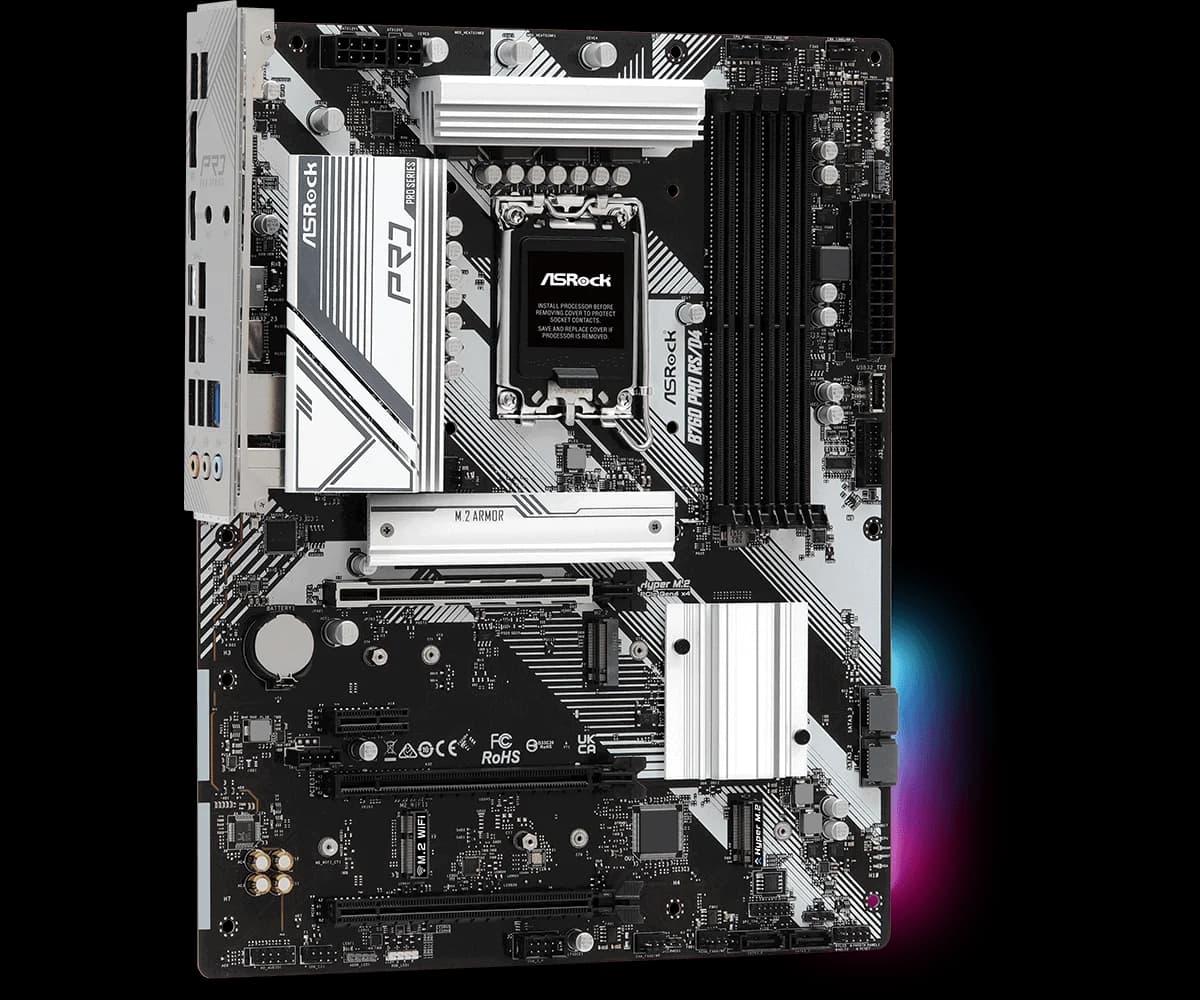

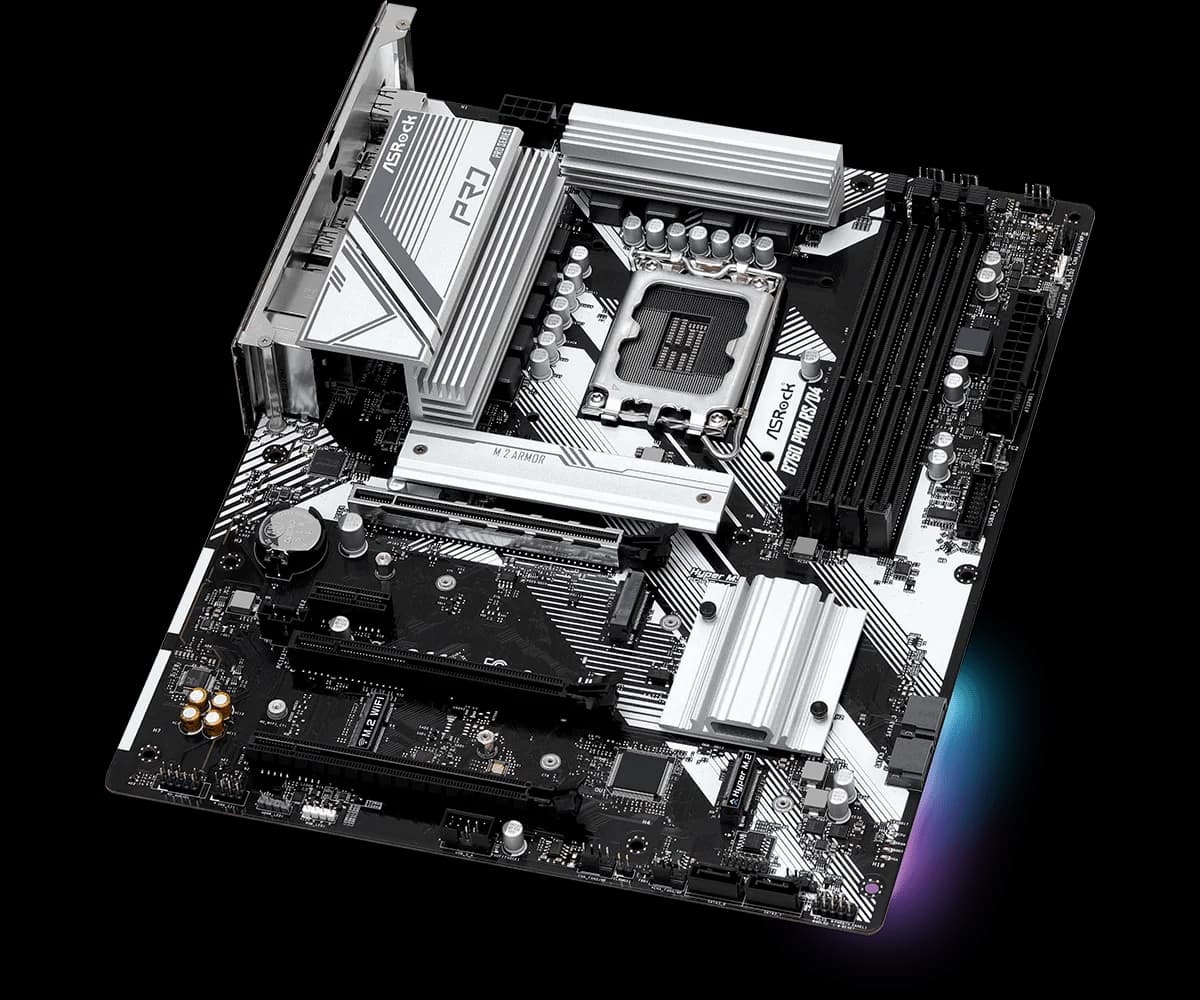

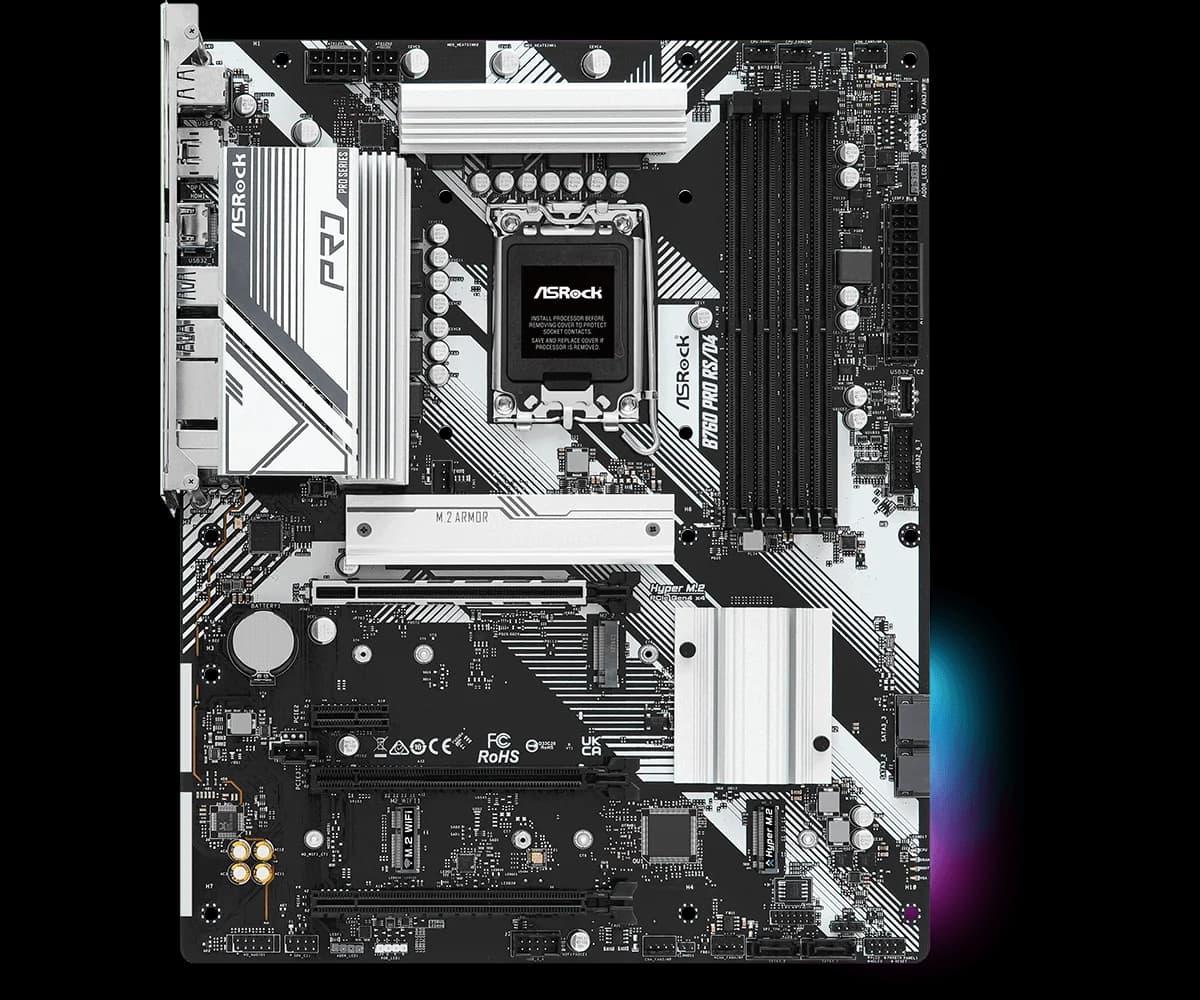

ASROCK B760 PRO RS/D4
ASROCK B760 4xDDR4 4xSATA3 RAID HDMI DP 3xM2 GLAN 3xPCIEx16 1xPCIEx1
| Марка | ASROCK |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4710483942075 |
|---|
| Чипсет | - Intel® B760 |
|---|---|
| Чипсет | Intel B760 |
| Тип памет | - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 128GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
|---|---|
| Брой слотове за памет DDR4 | 4 |
| Тип на устройството за съхранение | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | - Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|---|
| Аудио | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio |
|---|
| Слотове за разширение | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*; - 1 x PCIe 3.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire™ |
|---|---|
| HDMI | Да |

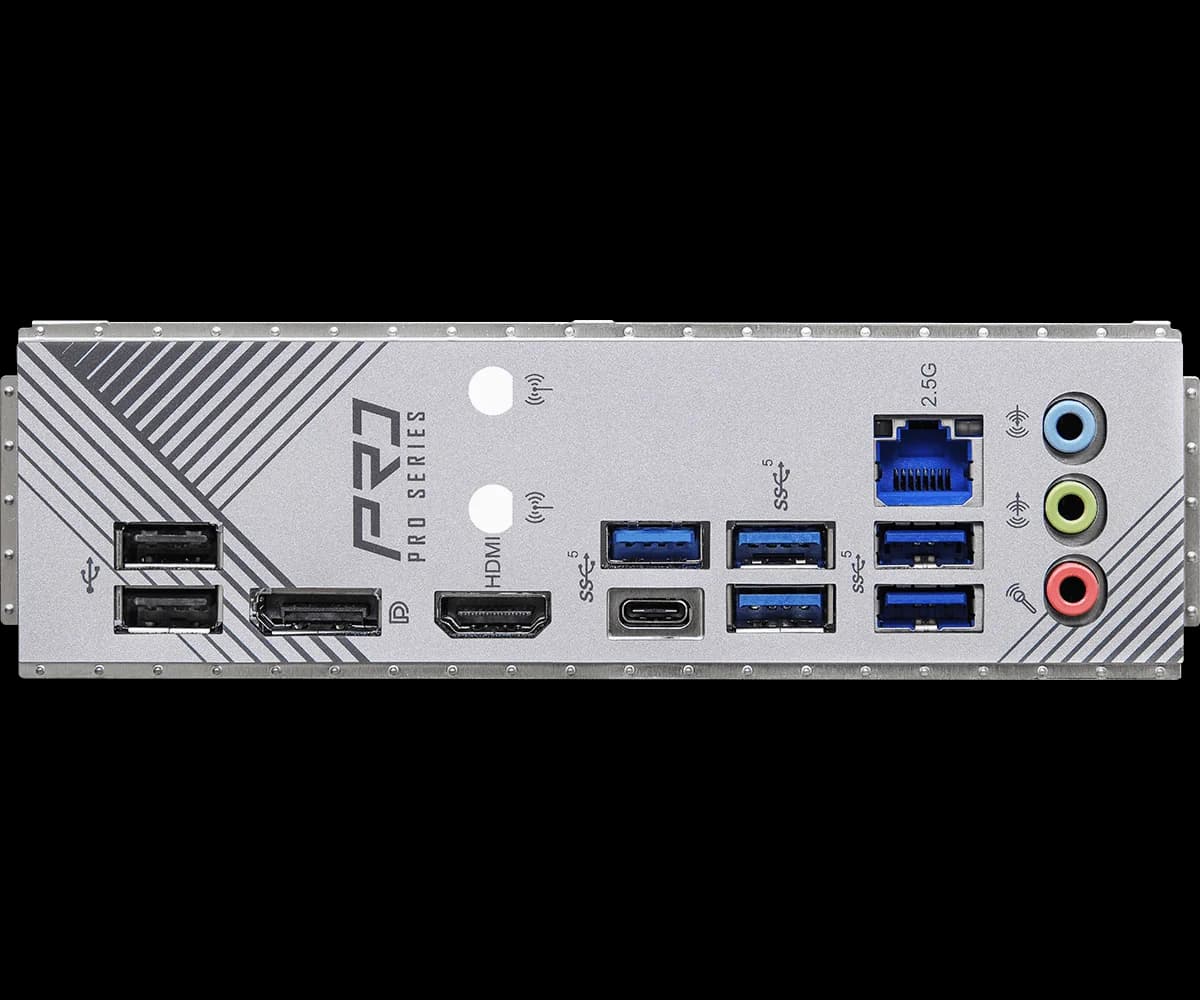

| Портове | - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 5 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Конектор | - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 2 x RGB LED Headers*; - 2 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s |
| DisplayPort | Да |
| 3 броя M.2 слотове | Да |
| 1 брой PCI Express x1 слот | Да |
| 3 броя PCI Express x16 слот | Да |
| Форм фактор | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|---|
| Операционна система | - Microsoft Windows® 10 64-bit / 11 64-bit |
|---|---|
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| RAID | RAID Supported / Поддържа RAID |
