B650I LIGHTNING WIFI

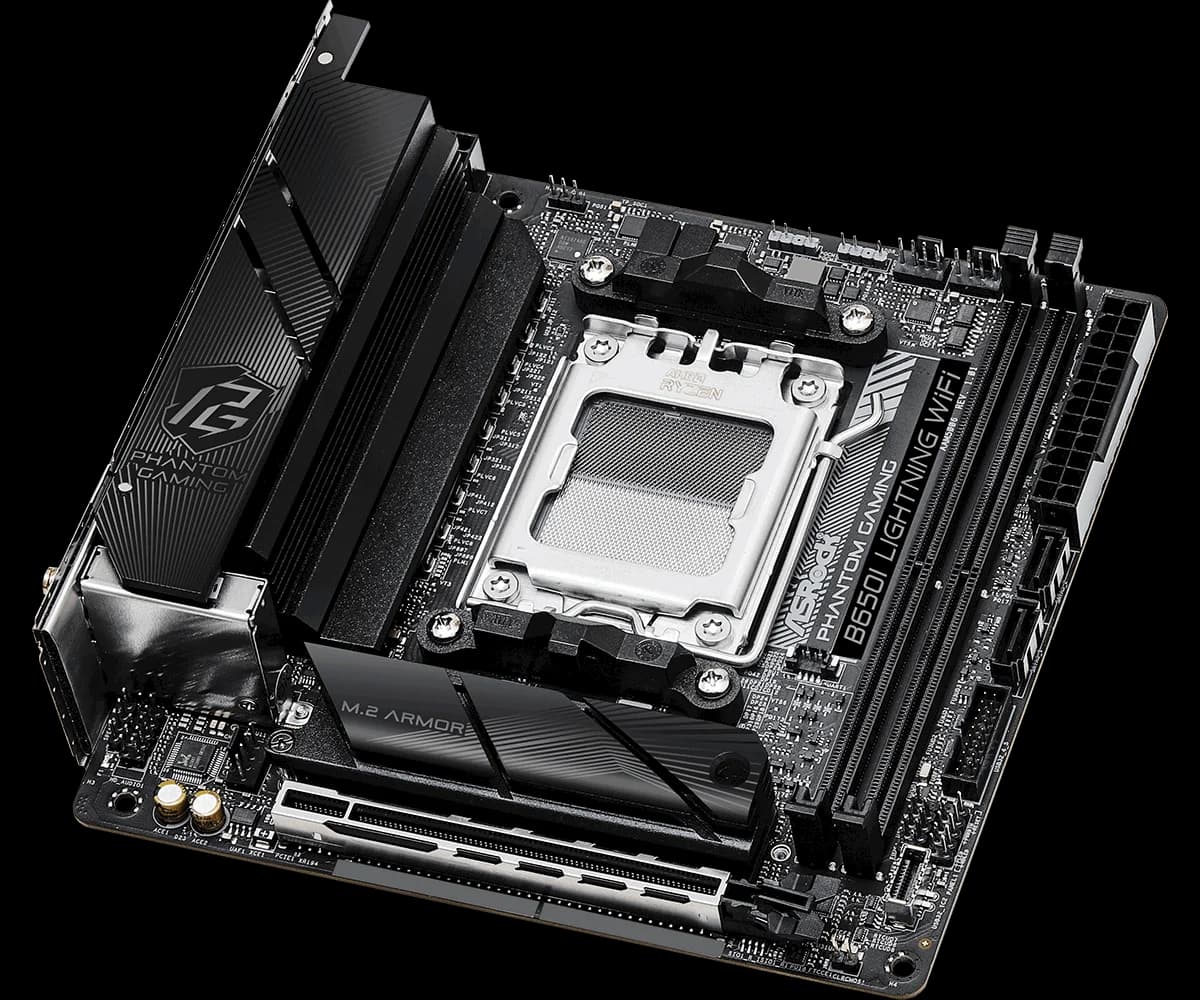

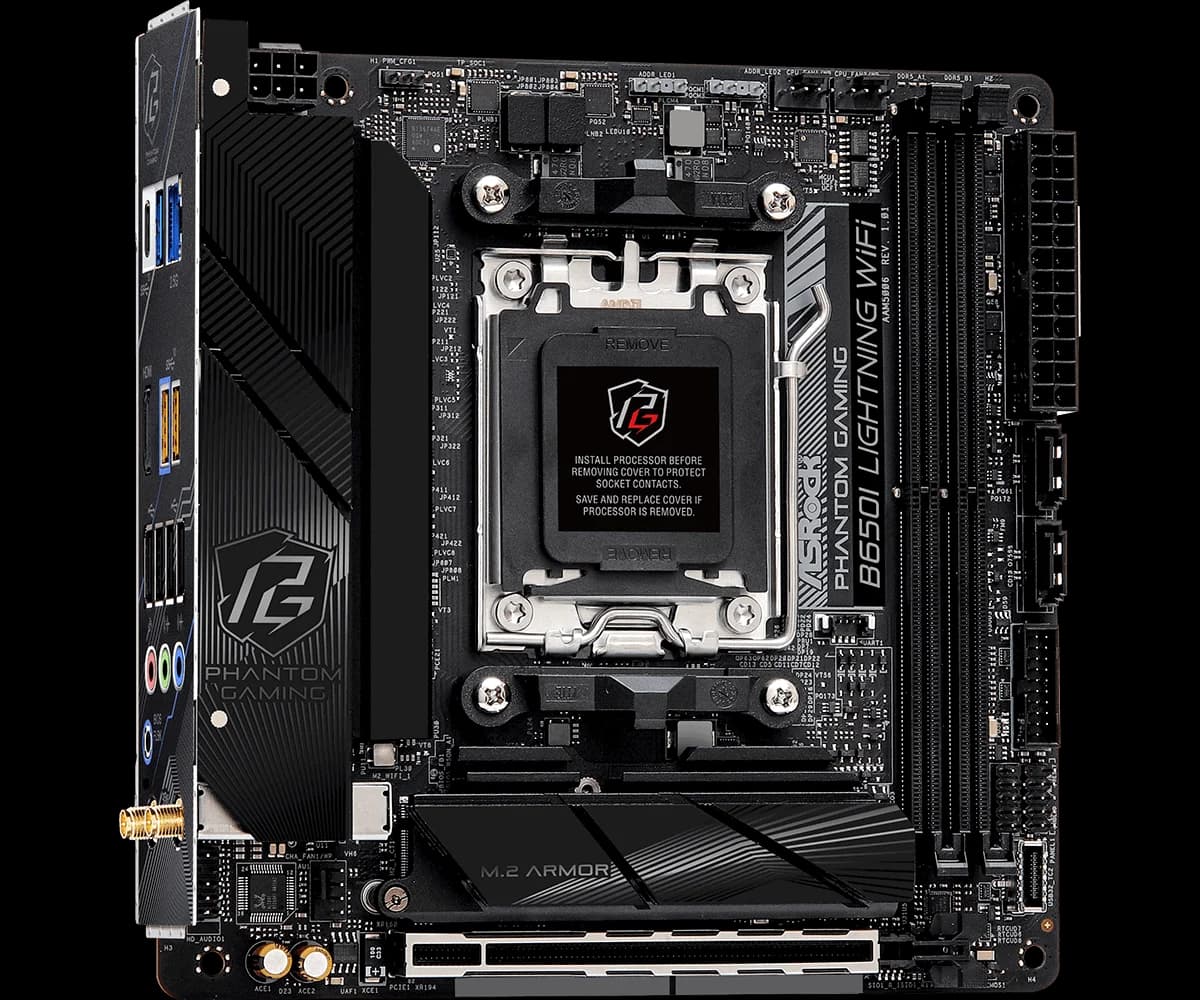

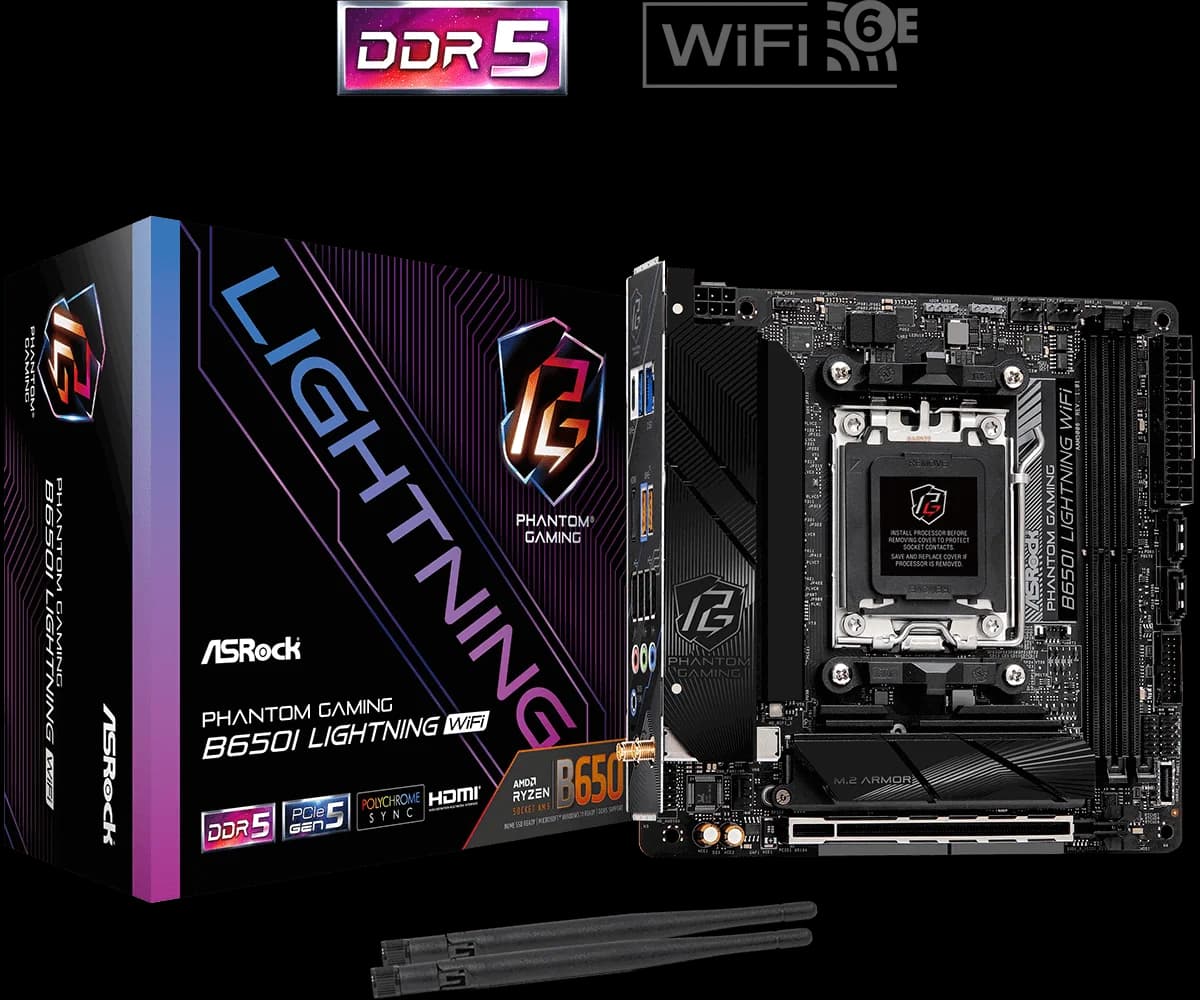

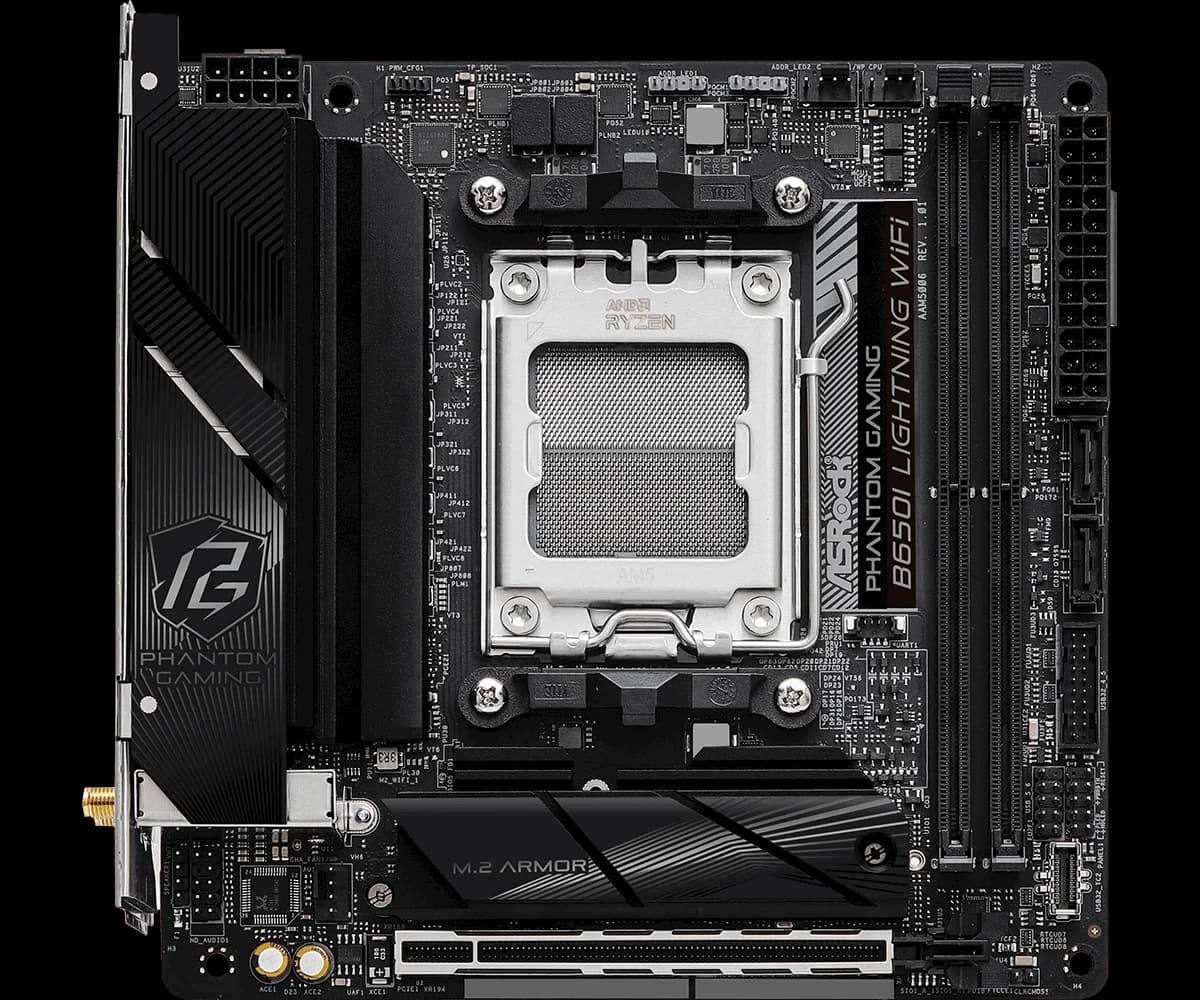

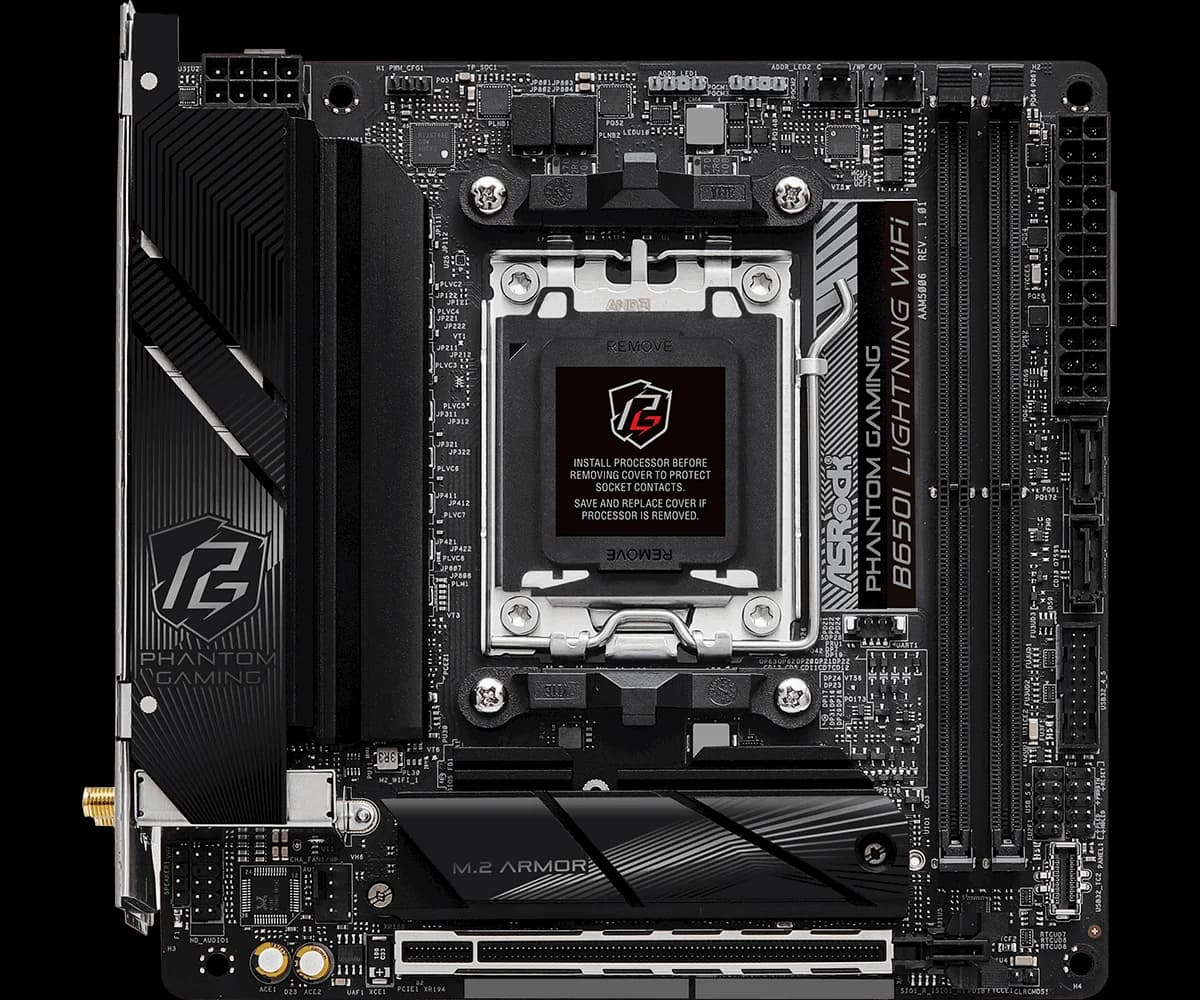

ASROCK B650I LIGHTNING WIFI
ASROCK B650 2xDDR5 2xSATA3 RAID HDMI 2xM2 GLAN 1xPCIEx16 WiFi
| Марка | ASROCK |
|---|---|
| Гаранция | 36 месеца |
| EAN | 4710483944253 |
|---|---|
| Допълнителна информация | Wireless LAN: 802.11ax Wi-Fi 6E Module;- Supports IEEE 802.11a/b/g/n/ac/ax;- Supports Dual-Band 2x2 with extended 6GHz band* support;- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;- Supports Bluetooth 5.2 + High speed class II;- Supports MU-MIMO |
| Чипсет | AMD B650 |
|---|---|
| Сокет | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Тип памет | Dual Channel DDR5 Memory Technology;- 2 x DDR5 DIMM Slots;- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*;- Max. capacity of system memory: 128GB;- Supports Extreme Memory Profile (XMP) and EXTended;Profiles for Overclocking (EXPO) memory modules |
|---|---|
| Брой слотове за памет DDR5 | 2 |
| Тип на устройството за съхранение | CPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;- 2 x SATA3 6.0 Gb/s Connectors |
|---|---|
| Брой SATA3 портове за диск | 2 |
| Графичен процесор | Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
|---|
| Аудио | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec);- Nahimic Audio |
|---|
| Слотове за разширение | CPU;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*;- 15μ Златист Contact in VGA PCIe Slot (PCIE1) |
|---|---|
| HDMI | Да |

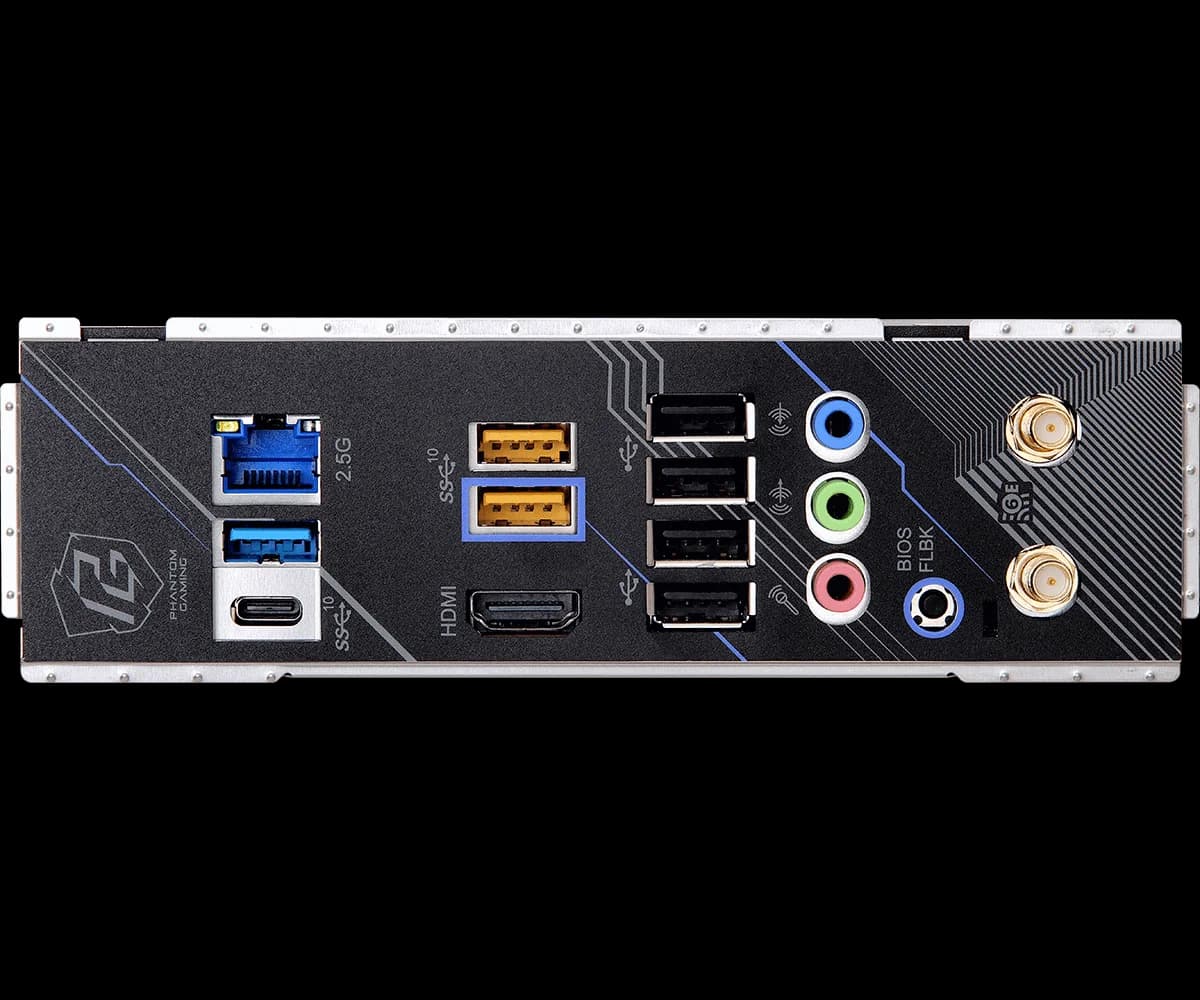

| Портове | - 2 x Antenna Ports;- 1 x HDMI Port;- 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.);- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s);- 4 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Конектор | - 2 x Addressable LED Headers*;- 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**;- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***;- 1 x 24 pin ATX Power Connector;- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector);- 1 x Front Panel Audio Connector;- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports);- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports);- 1 x Front Panel Type C USB 3.2 Gen1 Header |
| 2 броя M.2 слотове | Да |
| 1 брой PCI Express x16 слот | Да |
| Форм фактор | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm;- 8 Layer PCB |
|---|
| Операционна система | Microsoft Windows® 10 64-bit / 11 64-bit |
|---|---|
| BIOS | AMD B650 |
| RAID | RAID Supported / Поддържа RAID |
