A620M PRO RS
ASROCK A620M PRO RS
ASROCK A620 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 1xPCIEx16 2xPCIEx1
| Марка | ASROCK |
|---|---|
| Гаранция | 36 месеца |
| EAN | A620M PRO RS |
|---|
| Чипсет | - AMD A620 |
|---|
| Тип памет | - Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 192GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|---|---|
| Брой слотове за памет DDR5 | 4 |
| Тип на устройството за съхранение | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; * Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x2 (16 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors; * Supports NVMe SSD as boot disks |
|---|---|
| Брой SATA3 портове за диск | 4 |
| Графичен процесор | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU): - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|---|
| Аудио | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio |
|---|
| Слотове за разширение | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; * Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; * Supports NVMe SSD as boot disks; - 15? Златист Contact in VGA PCIe Slot (PCIE1) |
|---|---|
| HDMI | Да |

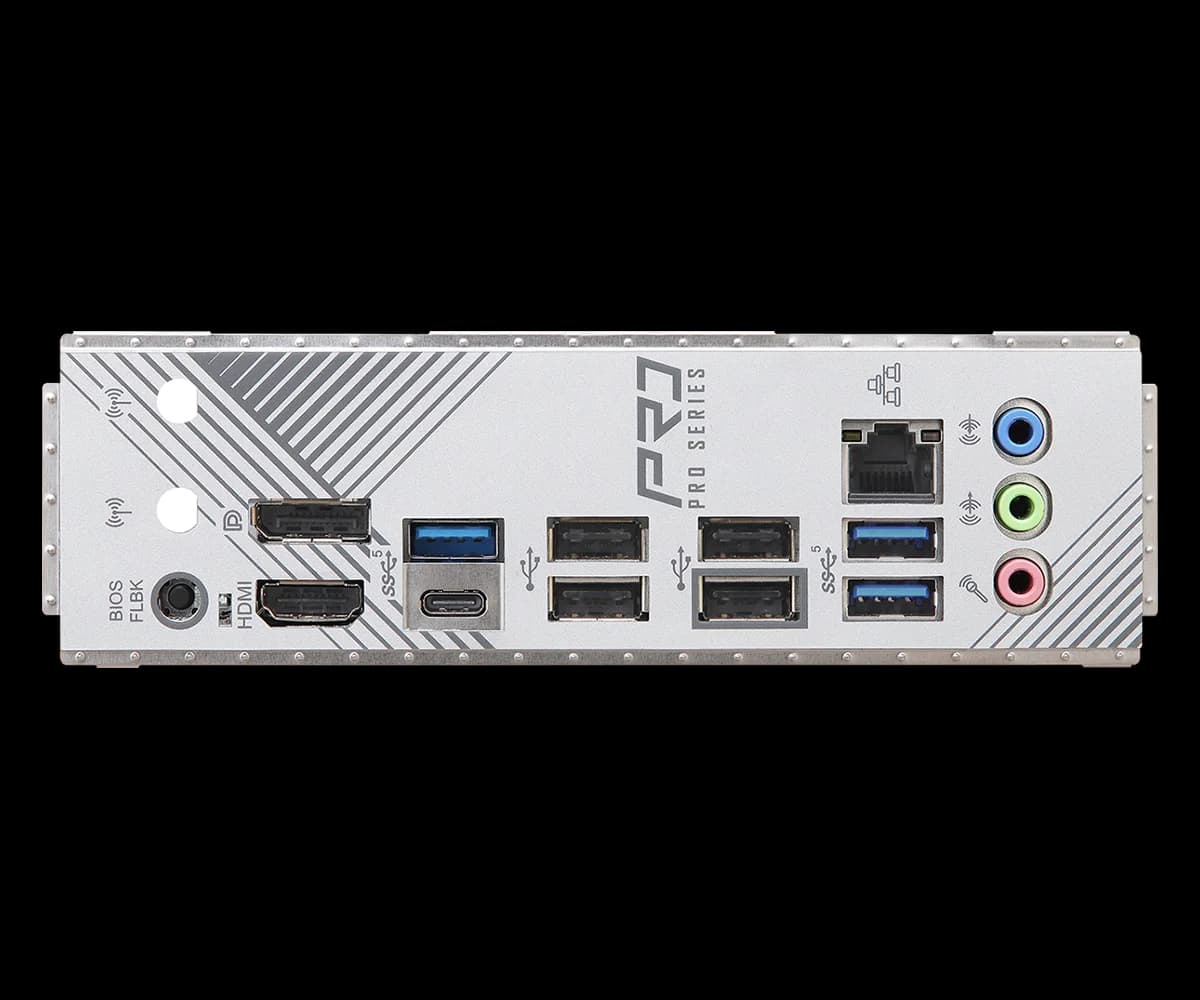

| Портове | - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 3 x USB 3.2 Gen1 Type-A Ports; - 1 x USB 3.2 Gen1 Type-C Port; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Конектор | - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).; **** CPU_FAN2/WP supports the fan power up to 2A (24W).*; **** CHA_FAN1~3/WP support the fan power up to 2A (24W).*; **** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| DisplayPort | Да |
| 1 брой PCI Express x16 слот | Да |
| 3 броя M.2 слотове | Да |
| 2 броя PCI Express x1 слот | Да |
| Форм фактор | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
|---|
| Операционна система | - Microsoft® Windows® 10 64-bit / 11 64-bit |
|---|---|
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| RAID | RAID Supported / Поддържа RAID |
